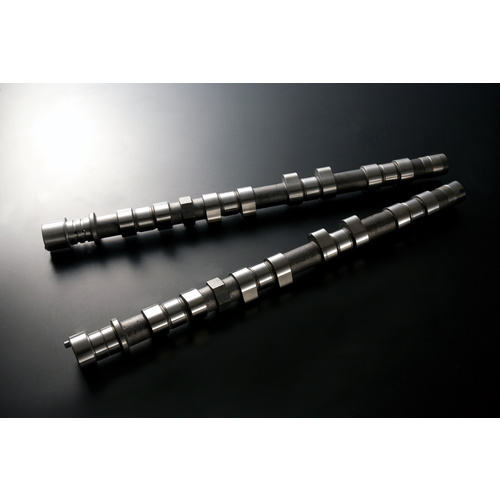

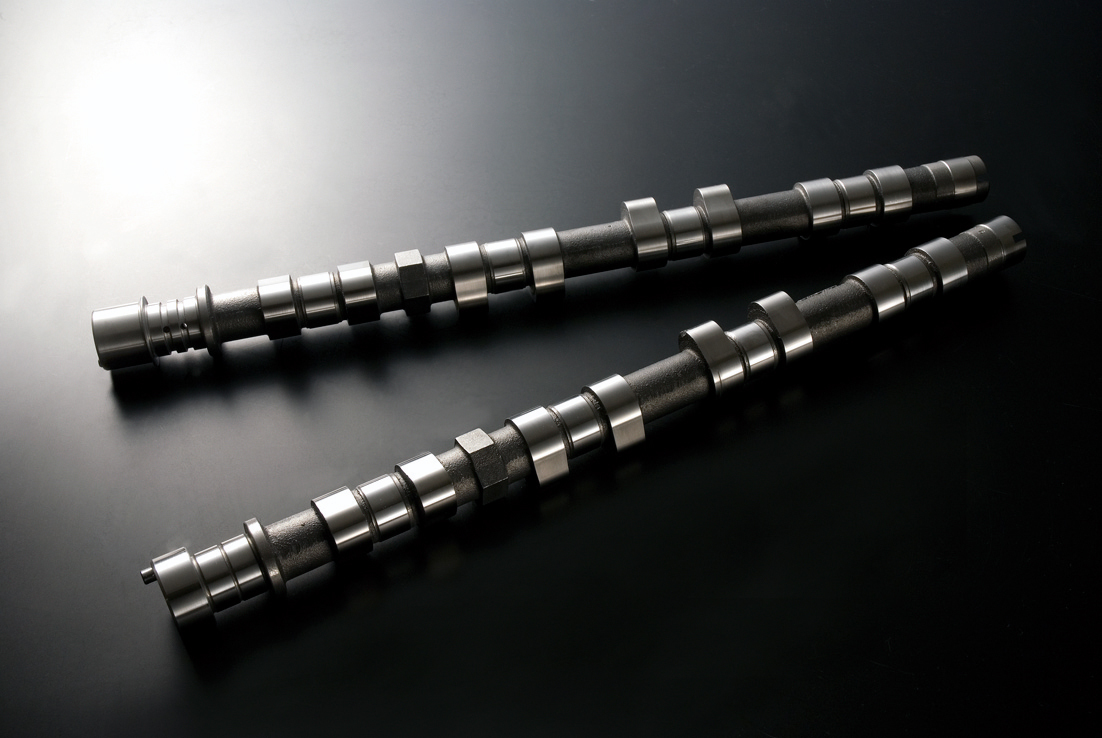

TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 4-9 4G63

SKU: 143066-67-68

TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 4-9 4G63

Buying Options

Quantity Image Name Price
143066 TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 4-6 4G63 143066 TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 4-6 4G63
$845.00
In stock
143067-TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 7-8 4G63 143067-TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 7-8 4G63
$845.00
In stock
143068-TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 9 4G63 143068-TOMEI PONCAM TYPE R FOR MITSUBISHI EVO 9 4G63
$895.00
In stock
Add Selected to Cart

Description

MITSUBISHI Pon cam type R for EVO 4 - 9

IN / EX Duration of operation (degree) Maximum
cam lift
(mm)		 Maximum
valve lift
(mm)		 Cooling valve
clearance
(mm) 【± 0.01】		 Vital
initial set value
central angle (degrees)		 Base circle
(Φ)		 Remarks
IN 270 6.17 10.70 ---- 105
(EVO 9 130)		 30 EVO 9 supports MIVEC
EX 270 5.88 10.20 ---- 115
(EVO 9 110)		 30

Conform Set part number Set price (¥) Single item number
EVO 4 to 6 143066   IN 1453270107
EX 1454270102
EVO 7 to 8 143067 IN 1453270107
EX 1455270102
EVO 9 143068   IN 1462270107
EX 1463270102

4G63 High-spec Pon
cam IN270-10.70 to further evolve tuning EX270-10.20

TOMEI has released a wide variety of camshafts for EVO 4G63 and has received high praise from many users. However, the needs of that user have changed with the times, and the tuning level of 4G63 has also improved with the enhancement of auxiliaries such as turbines. Therefore, TOMEI will develop a new camshaft that can make full use of ARMS M7960 turbine kit, and will deliver new moving performance to 4G63 users with fresh stimulation.

Features of PONCAM
■ Use special material
■ High precision grinding
■ Valve timing adjustment completed
■ No need for valve spring exchange
■ Overall high performance
■ Excellent turbine response
■ Variable valve timing correspondence * EVO 9
■ Stable idling
■ Best balance

MIVEC compatible cam
   With MIVEC compliance, you can experience the effect of cams throughout.
EVO 9




Specifications

SKU 143066-67-68
Brand TOMEI
Shipping Weight 7.0000kg
Shipping Width 0.170m
Shipping Height 0.080m
Shipping Length 0.540m
Shipping Cubic 0.007344m3
