Item: Radium Fuel Rail, Top Feed Conversion, Nissan SR20DET (S14/S15)
PORTS AND FITTINGS
The fuel rail ports are tapped for 8AN ORB.
8AN ORB Adapter Fittings can be found
The OEM 2-bolt IACV bypass hard line is replaced by a billet aluminum IACV spacer kit to gain clearance for the top feed fuel rail. An anodized aluminum barb adapter and rubber hose is supplied to reroute the charge pipe hose externally to the manifold. One gasket is included for the IACV spacer. To replace the original IACV gasket, go .

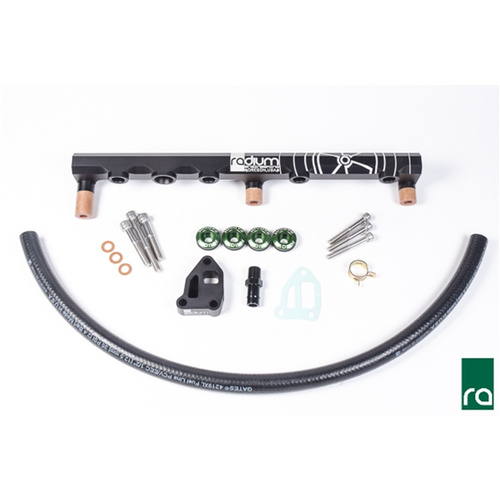

All parts listed below are included for a trouble and leak-free installation.
-Black Anodized Aluminum Fuel Rail
-Phenolic Mounting Bolt Spacers (x3)
-Phenolic Mounting Bolt Washers (x3)
-Radium 20-0161, Green Anodized Aluminum 25mm Injector Seats (x4)
-Radium 20-0162, Black Anodized Aluminum IACV Spacer Kit
-Radium 18-0014, IACV Gasket, SR20DET S14/S15 (x1)
-Black Anodized Aluminum IACV Barb Adapter
-Rubber Hose and OEM Clamp for IACV
-Stainless Steel M8x1.25 Mounting Bolts (x3)
-Stainless Steel M6x1 Mounting Bolts (x3)
| SKU | radium-20-0359 |
| Brand | RADIUM |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
