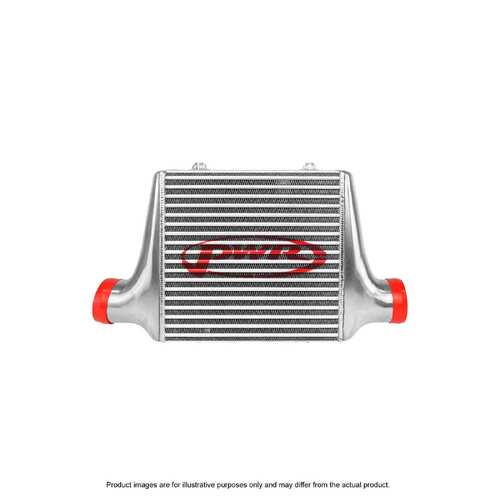

PWR Racer Series Intercooler - Core Size 500 x 300 x 68mm, 3" Outlets
PWR Racer Series Intercooler - Core Size 500 x 300 x 68mm, 3" Outlets
SKU: PWI82348

PWR Racer Series Intercooler - Core Size 500 x 300 x 68mm, 3" Outlets

intercooler

AUD$1,175.22

or 4 payments of AUD$293.81 with Info



In Stock


Calculate Shipping


Australia wide rate - AUD$65.00


ITEM: PWR Racer Series Intercooler - Core Size 500 x 300 x 68mm, 3" Outlets

Description

PWR manufacture the most efficient intercoolers in the world as used by the most elite motorsports categories. These charge air cooler assemblies including the core, are manufactured by hand in our state-of-the-art facilities on the Gold Coast. Intercoolers are made from high grade aluminium incorporating a thin wall, round nose extruded tube & fin configuration with a revolutionary louver fin design angle, which maximises the cooling efficiencies and disbursement of heat. With these characteristics each PWR Intercooler will deliver the highest levels of quality, consistent durability, strength and performance exceeding the highest levels of customer expectation.

  • Low restriction straight through integrated internal fin design
  • Up to 50% lighter than competitors with thin wall extruded core
  • Available in 68mm core thickness
  • Revolutionary 16fpi fin pitch and louver angles
  • Racer series cast aluminium end tanks offer improved flow over our previous Aero2 series
  • World class TIG welding by our passionate fabricators
  • State of the art controlled atmosphere brazing process
  • All items CAD designed to meet ISO9001 International standards for repeatability
  • Race and street proven performance backed by comprehensive CFD simulation & wind tunnel testing
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% Australian made
  • PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration.

Specifications

  • 500 x 300 x 68mm Tube and Fin Core
  • Light Weight Racer Series Core
  • Low Pressure Drop
  • 3” Outlets
  • High Flow Cast Tanks
  • Perforated Side Bands
  • Light Weight Mounting Bosses

What's Included

  • 1 x Universal Intercooler

compatibility

  • Universal

SKU PWI82348
Brand PWR
Shipping Weight 50.0000kg
Shipping Width 0.950m
Shipping Height 0.300m
Shipping Length 0.400m
