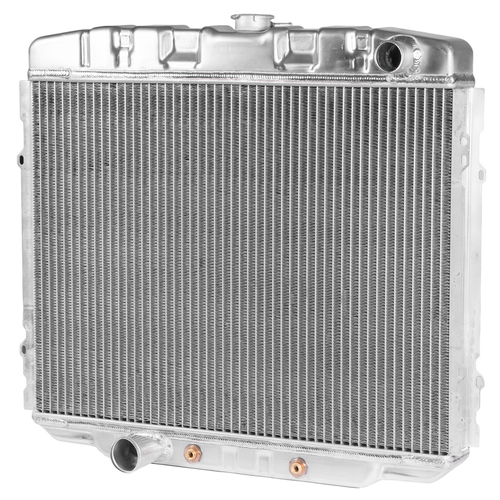

These direct upgraded replacements of the original Ford Falcon XW-XY / Fairlane ZC-ZD  Cleveland radiators feature two large 1” tubes for high flow and maximum cooling. Most brass copper radiators use 1/2" tubes so in comparison these radiators are equivalent to a 4 core radiator. These radiators are fitted with automatic transmission cooler as used in O/E vehicles.

Specifications:

• XR to XY with Cleveland or Windsor with L/H inlet water pump
• ZA to ZD with Cleveland or Windsor with L/H inlet water pump
• Accepts original Shroud and retaining clips
• 351 style battery tray should be used to provide adequate clearance
• PFERDM-077 suggested mounting kit
• OEM factory style pressed tanks
• Overall Width: 640mm
• Overall Height: 570mm
• Core Width: 600mm
• Core Height: 440mm
• With 3/8NPT Port In Top Tank For Electric Fan Switch
• With 1/4NPT Port in bottom tank for Sacrificial Anode PFE933-ANO (Recommended) or Drain Plug
