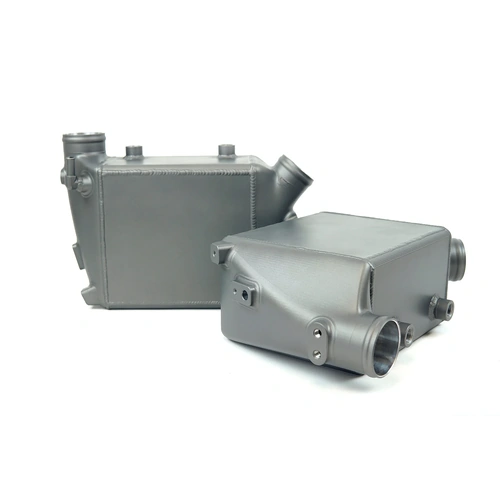

McLaren 720S / 765LT Twin Intercooler (Charge-Air-Cooler) Set

Initially designed by CSF R&D partner RK Autowerks using state-of-the art 3D scanning and prototyping equipment, we incorporated a massive custom-spec CSF bar/plate air-to-water core that is 68% larger than the OEM unit. Voodoo Autosport was then consulted to further enhance the design for a complete drop-in fit installation that is truly plug-and-play. Lastly, but not least, CSF reached out to the best tuners of the world's fastest McLarens, M Engineering, to performance test the coolers. Final results: 99% efficiency (vs. OEM 94%) along with lower pressure drop across the cooling system.CSF's core technology is also more resistant to heat soak compared to the OEM plate-type intercooler core. Not only is the core proven to lower IATs, but also maintains a more consistent lower average temperature - this is ideal for achieving optimal performance on vehicles with larger/upgraded turbochargers as well as maintaining maximum efficiency during racing or demanding driving conditions with repeated pulls such as at the drag strip or half-mile events. Performance testing resulted in lower outlet air temperatures from the CSF Intercoolers, showing almost no increase in intake air temperatures during the entire course of the dyno pull.Not only do the CSF Intercoolers perform better than the OEM, but also decrease the pressure drop at high air mass flow as well. The OEM intercooler system resulted in approximately 1.0psi of pressure drop vs. the improved performance of CSF's upgraded intercooler kit showing approximately 0.75psi of pressure drop.

The CSF #8186 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Features and Benefits

• Custom-Spec High-Performance CSF Bar/Plate Core Built In-House
• 68% Increase in Core Volume vs. OEM - Efficiency Tested at 99% by M Engineering vs. OEM 94%
• Single Core Dual-Pass Design vs. Inefficient Multiple Core Design Found in Competitors Lower Quality/Less Efficient Offerings
• Pressure Tested to 4bar (58psi)
• CNC Machined 6061 Aluminium Billet End Tanks Designed and Produced by RK Autowerks
• Finished in CSF's Aerospace-Grade Thermal Dispersion Space Grey Coating for Maximum Heat Transfer Efficiency and OEM+ Aesthetic
• Integrated Dual 1/8-NPT Methanol Injection Bungs Positioned on Outlet Tank for Post-Intercooling Reduction of IATs - Come Pre-Plugged For Vehicles Without Methanol Injection (Can Also Be Used As Sensor Ports)
• Complete Drop-in Fit Package With No Modifications Required for Installation (Can Be Installed From the Rear Wheel Well Without Removing the Downpipes)
• Includes Laser-Cut Machined Brackets and Reinforced Silicone Couplers for Throttle Body Connections
• Made in the USA

Technical Specifications

• Core Material: Aluminium
• Finish/Color: Thermal Grey Heat Dispersion Cerakote
• Installation Type: Drop-In Fit Installation
