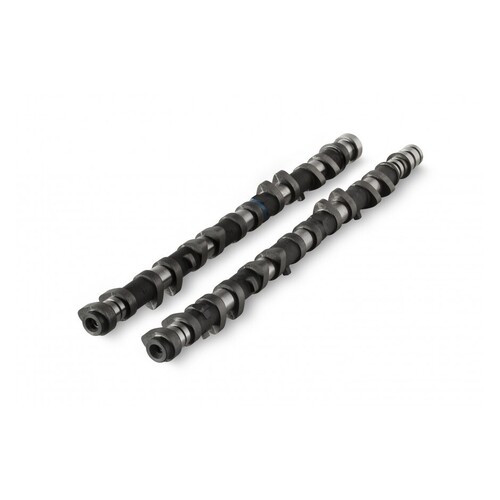

Kelford Cams V202-D Camshaft Set for (2JZ-GTE VVTI) - 272/278 Deg
Kelford Cams V202-D Camshaft Set for (2JZ-GTE VVTI) - 272/278 Deg
SKU: kelford-V202-D

Kelford Cams V202-D Camshaft Set for (2JZ-GTE VVTI) - 272/278 Deg

KELFORD CAMS

$1,265.00

or 4 payments of $316.25 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams V202-D Camshaft Set for (2JZ-GTE VVTI) - 272/278 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272/278 Degrees advertised duration. 9.95mm/9.95mm lift
  • 272/278 Degree racing camshafts. These are our most popular cams for a vast range of motorsport applications.

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 2JZ VVTi V202-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: EVO: 60 BBDC
    IVC: EVC: 0 TDC
Suggested Centre Lines:   Intake: VARI Exhaust: 120
VALVE Lift @ TDC Intake: Exhaust: 0.94



compatibility

  • 1993-1998 Toyota Supra

SKU kelford-V202-D
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
