SKU: kelford-T203-B

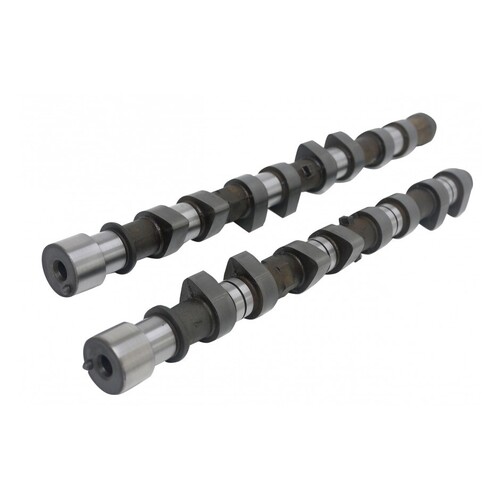

Kelford Cams T203-B Camshaft Set for (323 B6 Turbo) - 264/264 Deg

KELFORD CAMS

$974.05

or 4 payments of $243.51 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

item: Kelford Cams T203-B Camshaft Set for (323 B6 Turbo) - 264/264 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 264/264 Degrees advertised duration, 8.95mm/8.95mm lift
  • High performance cams that give great power gains in engines with stock FG size turbo. Retains good idle tuneability and low end driveability. The original Ford valve spring can be used if you retain stock RPM limit and under 1.1 bar. Past that, the KVS40-K spring set is required.

Specifications

Engine Make: Engine Model: Part Number:
MAZDA Miata 323 B6 Turbo T203-B
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 8.95mm Exhaust: 8.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.95mm Exhaust: 8.95mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 222 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 43 BBDC
    IVC: 41 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.10mm Exhaust: 0.96



compatibility

  • 1987-1994 Mazda Familia

Specifications

SKU kelford-T203-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
