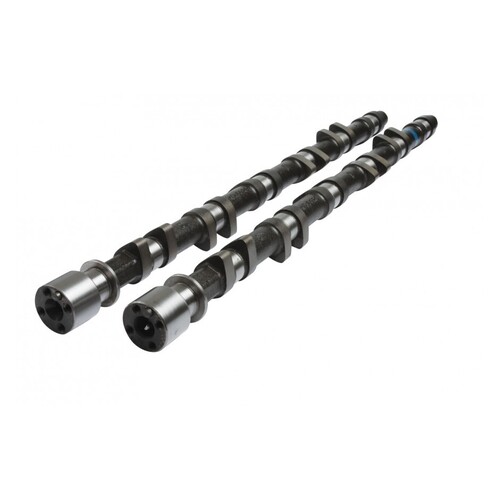

Kelford Cams H182-SD Camshaft Set With Split Lobe Design for (RB20-25DE/DET) - 278, 272/278 Deg
KELFORD CAMS
Description
item: Kelford Cams H182-SD Camshaft Set With Split Lobe Design for (RB20-25DE/DET) - 278, 272/278 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 278&272/278 Degrees advertised duration, 10.00mm&10.00mm/10.00mm lift
- 276/276 Degrees advertised duration, 11.00mm/10.97mm lift. Stage 3 racing cams to suit well built racing engines. Suitable for many types of motorsport applications.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | RB20&25DE/T | H182-SD | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 278 | Exhaust: | 278 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 238 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 9 BTDC | EVO: | 55 BBDC | ||
IVC: | 49 ABDC | EVC: | 3 ATDC | ||||
Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 1.84mm | Exhaust: | 1.31 |
compatibility
- 1989-1994 Nissan Skyline R32 GTS
- 1984-1989 Nissan Laurel C32
- 1995-1998 Nissan Skyline R33 GTS-T
- 1999-2002 Nissan Skyline R34 GTT
Specifications
SKU | kelford-H182-SD |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
