SKU: kelford-184-D

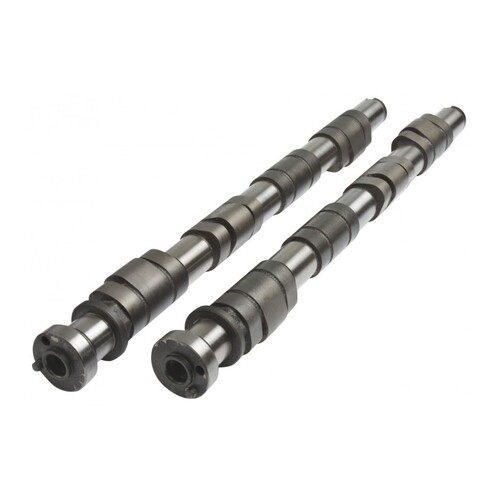

Kelford Cams 184-D N1 Spec Camshaft Set - 324/300 Deg for (SR16/20VE)

KELFORD CAMS

$1,482.25

or 4 payments of $370.56 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

item: Kelford Cams 184-D N1 Spec Camshaft Set - 324/300 Deg for (SR16/20VE)

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 324/300 Degrees advertised duration, 12.00mm/11.90mm lift
  • Naturally aspirated race cams for street / strip and track day applications.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-D
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 7.70mm Exhaust: 7.84mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 12.00mm Exhaust: 11.90mm
Advertised Duration @ 0.10mm Intake: 324 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 255 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 25.5 BTDC EVO: 50 BBDC
    IVC: 49.5 ABDC EVC: 22 ATDC
Suggested Centre Lines:   Intake: 102 Exhaust: 104
VALVE Lift @ TDC Intake: 3.70mm Exhaust: 2.80



compatibility

  • 1998-2000 Nissan Pulsar VZ-R N15
  • 1997-2000 Nissan Primera Te-V sedan or G-V wagon P11 JDM, 190 PS (187 hp; 140 kW)
  • 2001-2003 Nissan Primera, 20V sedan or W20V Wagon P12 JDM, 204 PS (201 hp; 150 kW)
  • 1997-2000 Nissan Bluebird SSS-Z sedan U14 JDM, 190 PS (187 hp; 140 kW)
  • 1997-2000 Nissan Wingroad ZV-S wagon Y11 JDM, 190 PS (187 hp; 140 kW)

Specifications

SKU kelford-184-D
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
