SKU: kelford-147-D

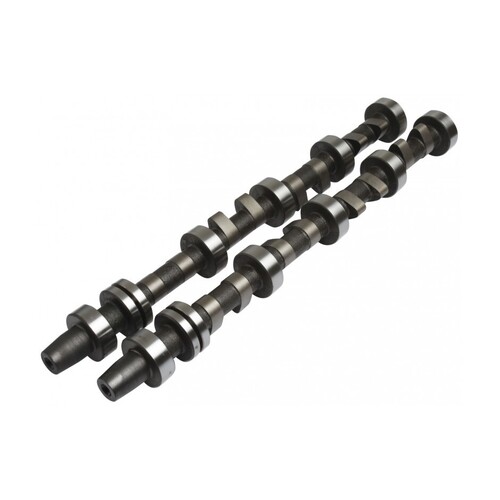

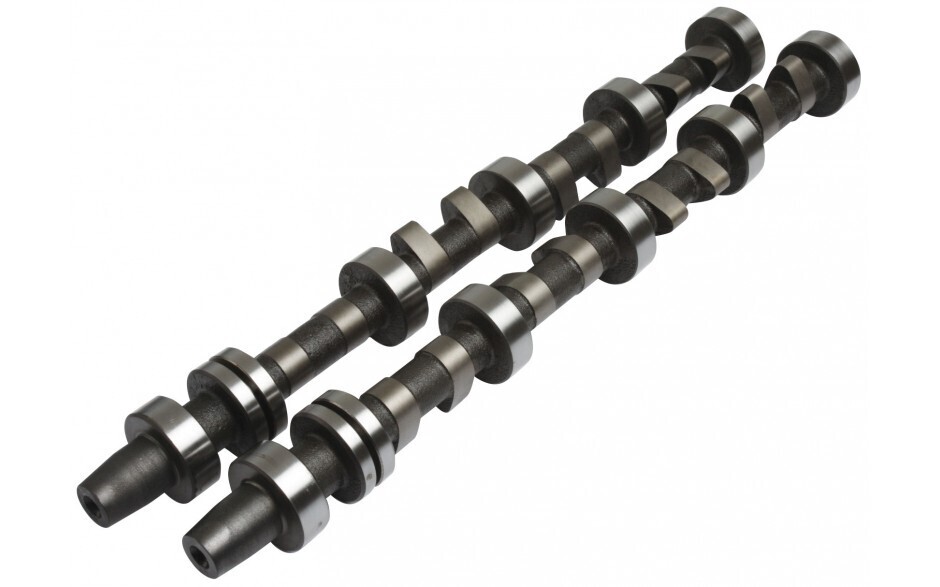

Kelford Cams 147-D Camshaft for (Cosworth BDA) - 256/243 Deg

KELFORD CAMS

$1,203.95

or 4 payments of $300.99 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

item: Kelford Cams 147-D Camshaft for (Cosworth BDA) - 256/243 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 256/243 Degrees duration @ 0.050" cam lift, .418"/.398" lift
  • K20-24 racing cams, designed for track racing applications. Large low lobes require idle tuning by TPS. Super strong midrange power, rough idle on plenum manifolds. Primary/Intermediate lobe specifications are 258 & 272/258 & 262 degrees advertised duration. 11.20mm & 11.30mm/8.15mm & 8.40mm lift.

Specifications

Engine Make: Engine Model: Part Number:
FORD Cosworth BDA 147-D
Valve Clearance: Intake: 0.010" Set COLD at the CAM
  Exhaust: 0.010" Set COLD at the CAM

Cam Lift:   Intake: 0.428" Exhaust: 0.408"
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 0.418" Exhaust: 0.398"
Advertised Duration @ 0.010" Intake: 310 Exhaust: 298
Duration @ .050" VALVE LIFT Intake: 256 Exhaust: 243
Timing @ .050" VALVE LIFT IVO: 26 BTDC EVO: 49.5 BBDC
    IVC: 50 ABDC EVC: 13.5 ATDC
Suggested Centre Lines:   Intake: 102 Exhaust: 108
VALVE Lift @ TDC Intake: 0.164" Exhaust: 0.110"



compatibility

  • Ford Cosworth BDA

Specifications

SKU kelford-147-D
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
