JE Pistons for BBC 509 258286

JE Pistons for BBC 509 258286

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

Description
Specifications

Item: JE Pistons, BBC 509, Bore 4.500, Stroke 4.000, Rod Length 6.135, Dome +42cc, 699 Grams, Set

JE pistons for big block engines are an excellent choice for drag race applications. Compression Height figured using 9.780 block height with zero deck clearance. Dome pistons listed will not work with Edelbrock head #6045, 6040, 6055, pistons for these heads are available as special order. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings.

Includes:

Pin #990-2930-15-51S (150g)

Double spiro locks (#990-042-CS)

Double pin oilers

Accumulator Grooves

Compression Ratio:

110cc 14.3:1

118cc 13.1:1

124cc 12.3:1

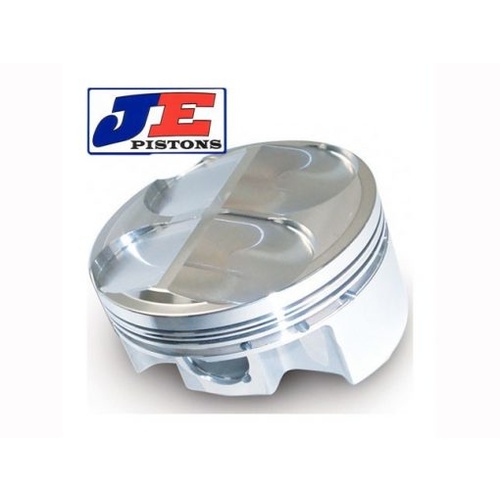

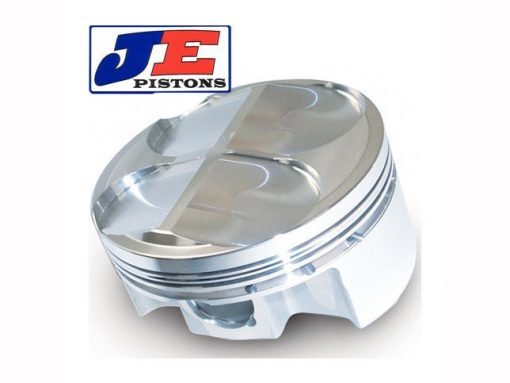

Photo is for illustration purposes only

15

(JE-PIS-258286)

SKU	JE-PIS-258286
Brand	JE Pistons
Shipping Weight	10.0000kg
Shipping Width	0.500m
Shipping Height	0.200m
Shipping Length	0.400m
