JE Pistons for BBC 505 258268
JE Pistons for BBC 505 258268
SKU: JE-PIS-258268

JE Pistons for BBC 505 258268

Part Number: 258268

$1,857.60

or 4 payments of $464.40 with Info



In Stock


Calculate Shipping


Australia wide rate - $30.00 (ETA: 3 days)


Item: JE Pistons, BBC 505, Bore 4.350, Stroke 4.250, Rod Length 6.535, Dome +43cc, 625 Grams, Set

JE pistons for big block engines are an excellent choice for drag race applications. Compression Height figured using 9.780 block height with zero deck clearance. Dome pistons listed will not work with Edelbrock head #6045, 6040, 6055, pistons for these heads are available as special order. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings.

Includes:

  • Pin #990-2930-15-51S (150g)
  • Double spiro locks (#990-042-CS)
  • Double pin oilers
  • Accumulator Grooves

    Compression Ratio:

  • 110cc 14.5:1
  • 118cc 13.2:1
  • 124cc 12.4:1

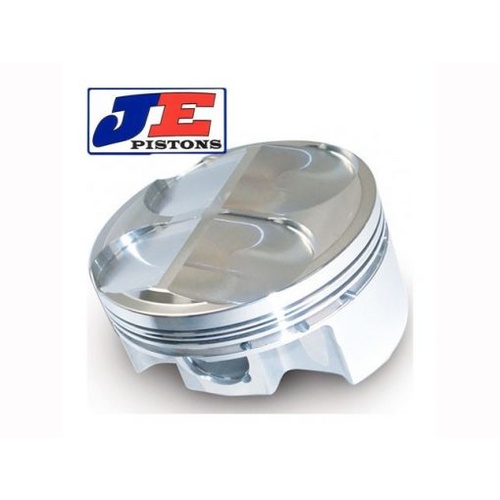

  • Photo is for illustration purposes only

    SKU JE-PIS-258268
    Brand JE Pistons
    Shipping Weight 10.0000kg
    Shipping Width 0.500m
    Shipping Height 0.200m
    Shipping Length 0.400m
