SKU: INNOVATE-3906

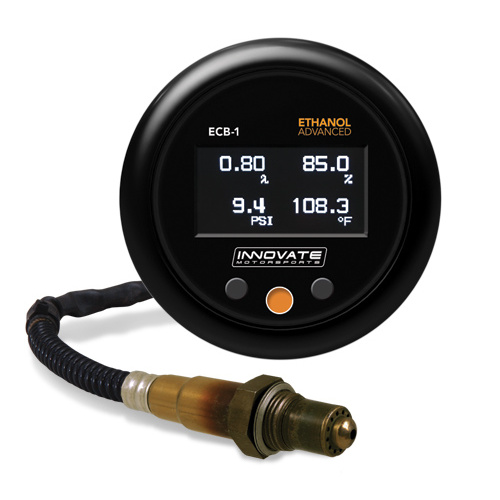

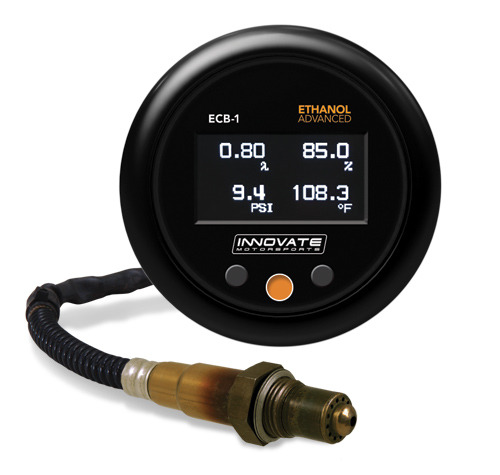

Innovate ECB-1: (BOOST) Ethanol Content & Air/Fuel Ratio Gauge

3906

$691.85

or 4 payments of $172.96 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

Item: Innovate ECB-1: (BOOST) Ethanol Content & Air/Fuel Ratio Gauge

The Ethanol Advanced gauges combine our patented DirectDigital O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand!

  • Four-in-one, ethanol content percentage, fuel temperature, boost pressure, and wideband air/fuel ratio gauge
  • Boost Vision - a real-time calculated approximation of your ECU™s boost limit based on current ethanol content percentage
  • OLED user configurable display (one, two, or four channel viewing modes)
    • Ethanol %, Vacuum/Boost, Target Boost, Peak Boost, Fuel Temp, Air/Fuel ratio
    • F orC, AFR or Lambda, inHG, PSI, kPa, or BAR
    • On screen error reporting for ethanol content sensor and wideband O2
  • Warning indicator LED when actual boost exceeds target boost (user programmable)
  • Peak hold function
  • 4 BAR map sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
  • 3-Configurable analog outputs for use with standalone and other programmable ECU™s as well as external data loggers
    • Ethanol Content: 0v = 0%, 5v = 100%
    • Fuel Temp: 0v = -40F, 5v = 257F (-40-125C)
    • Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 Lambda)
  • Pressure readings can be adjusted for altitude differences
  • 52mm (2 1/6�) diameter gauge body with interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates included
  • No PC required for configuration
  • Bosch LSU 4.9 wideband O2 sensor
  • Patented DirectDigital wideband sensor control, 100% digital wideband air/fuel ratio technology!
  • Wideband O2 Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
  • Ability to calibrate O2 sensor for maximum accuracy
  • Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)

Specifications

SKU INNOVATE-3906
Brand INNOVATE MOTORSPORTS
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.200m
