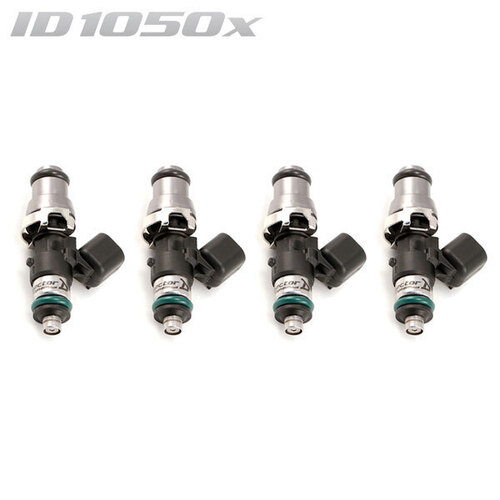

ID1050-XDS Injectors Set of 4, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Honda S2000 AP2/Civic/Integra/Accord (K20/K24)
ID1050-XDS
Description
Item: ID1050-XDS Injectors Set of 4, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Honda S2000 AP2/Civic/Integra/Accord (K20/K24)
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.
Features:
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
- Fuel Compatibility: Compatible With All Known Fuels
- Electrical Connector: USCAR
Vehicle Fitment
2001 Honda Civic EP3 Type-R |
2001 Honda Integra DC5 |
2002 Honda Accord CL Euro |
2002 Honda Civic EP3 Type-R |
2002 Honda Integra DC5 |
2003 Honda Accord CL Euro |
2003 Honda Accord CM |
2003 Honda Civic EP3 Type-R |
2003 Honda Integra DC5 |
2004 Honda Accord CL Euro |
2004 Honda Accord CM |
2004 Honda Civic EP3 Type-R |
2004 Honda Integra DC5 |
2004 Honda S2000 AP2 |
2005 Honda Accord CL Euro |
2005 Honda Accord CM |
2005 Honda Civic EP3 Type-R |
2005 Honda Integra DC5 |
2005 Honda S2000 AP2 |
2006 Honda Accord CL Euro |
2006 Honda Accord CM |
2006 Honda Civic FN2 Type-R |
2006 Honda Integra DC5 |
2006 Honda S2000 AP2 |
2007 Honda Accord CL Euro |
2007 Honda Accord CM |
2007 Honda Civic FN2 Type-R |
2007 Honda Integra DC5 |
2007 Honda S2000 AP2 |
2008 Honda Accord CL Euro |
2008 Honda Civic FN2 Type-R |
2008 Honda S2000 AP2 |
2009 Honda Civic FN2 Type-R |
2009 Honda S2000 AP2 |
2010 Honda Civic FN2 Type-R |
2011 Honda Civic FN2 Type-R |
Specifications
SKU | id-1050.48.14.14.4 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
