TEMPREATURE SENSOR ADAPTER KIT (Part #0409)

No need to squeeze the probe of the Mechanical Thermatic Switch between the radiator inlet and radiator hose, or the radiator fins.

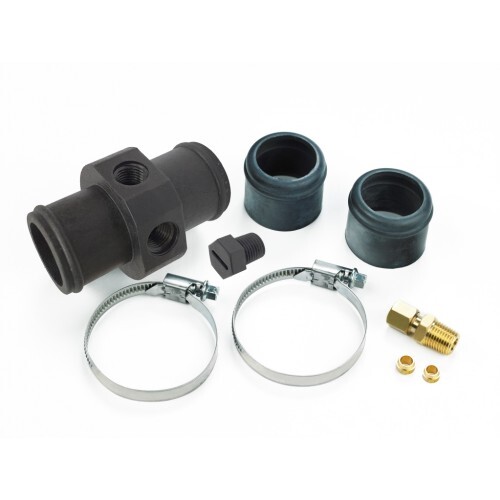

This simple, economical Adaptor Kit allows easy fitting directly into the top radiator hose. Just fit the probe into the compression fitting, remove about 17mm (2/3”) of radiator hose, fit the adaptor between each hose and secure the hose clamps. The kit comes complete, as shown, for a watertight and effective probe installation. Extra rubber sleeves are supplied to enable fitment to radiator hose sizes from 32mm to 40mm (1¼” to 1½”) diameter. Suits all temperature sensors with either a 5mm (3/16”) or a 6mm (1/4” outside diameter and temperature gauge senders with 6mm (1/4”) NPT thread.

The Inline Sensor Adaptor simply fits into your engine’s top radiator hose. The adaptor ends for hose fitting are 35mm in size.

• With the use of our 3mm adaptor sleeve (Included in kit), this can be increased to 38mm (Part #18510)
• With the use of our 6mm adaptor sleeve (Optional), this can be increased to 41-42mm (Part #18511)

Two 1/4" NPT holes allow the fitment of a sensor and or air bleed. Should you only need one hole, a bung is included.

Suits temperature sensors with either a 5mm or a 6mm outside diameter and temperature gauge senders with ¼” NPT thread.

Note: This is an accessory for use with #0401, #0404, #0444 and #0455 Thermatic Switches.

 To suit the Davies, Craig Thermal Switch (Part #0400, #0401, #0404) use 6mm olive supplied.

For #0444 & #0500 sensor use 5mm olive supplied.
