EWP & FAN DIGITAL CONTROLLER (MODULE ONLY) (PART #8102)

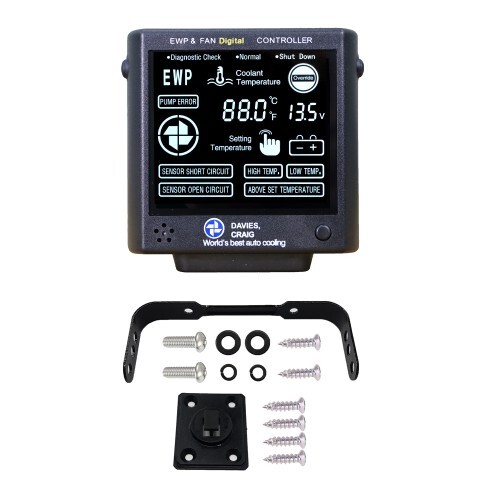

*NOTE: this part ONLY includes the controller and mounting hardware (bracket, nylon plate) for customer that may already have all other components due to replacing a damaged unit or upgrading from an older model.

For all other applications, please look at the full kit part number 8002.

The updated controller offers enhanced rounded appearance, slimmer and the seven-pin plug is now safely tucked away, out of sight at the base of the Controller.  It now also has 2 mounting options:

1. Bracket
2. Nylon Plate

The EWP/Fan Digital Controller has two specific functions:

1. Will manage the operation of the EWP by varying the speed of the pump in response to the coolant temperature
2. Manage control of your electric engine fan.

The Controller has a push-button to lock in any temperature from 40°C (104°F) to 110°C (230°F). It’s recommended you set/target the Controller to closely match your engine’s existing thermostat temperature.
The Digital Controller will operate the engine’s electric fan automatically once the engine has reached +3°C (+5.4°F) above the targeted / set temperature. Another significant benefit is that the Controller allows the EWP & Fan to run on after ignition shutdown for either 3 minutes or -10°C (-14°F) of set set / target temperature to eliminate heat soak.

Sensor Wire Length: 250cm, Increase to 380cm (Oct 2020)

EWP, Fan & LCD Controller Installation                                                                                LCD Controller Wiring Instructions

The contrasting black & white screen and comprehensive diagnostic menu of engine cooling management at a glance includes;

• Numerical LCD exhibiting real-time numerical on-going engine & targeted/set temperatures
• Flashing EWP logo signifying pump pulse, width, modulation (PWM) operation and delivering the desired coolant flow through the engine
• Individual, adjustable targeted/set temperatures from 40°C (104°F) to 110°C (230°F)
• Rotating Davies Craig Thermatic Fan symbol indicating fan operation (which automatically engages at +3ºC (+37.4ºF) above the set/targeted coolant temperature.)
• Your set/targeted temperature can now be held in memory if the battery is disconnected.
• Override feature to assist with EWP bleeding operation.
• Voltage output.

A suite of self-diagnostic ‘test’ functions are still on offer that identify and deliver visual and audible warnings enabling simple trouble-shooting if a system problem is evident. An audible alarm will sound when;

• * Coolant temperature doesn’t exceed 40ºC (104ºF) within 5 mins of start-up.
• * Coolant exceeds +10ºC (+50ºF) of set/targeted temperature.
• * Coolant temperature exceeds 100ºC (212ºF).
• * Voltage supply is either too high or too low.
• * EWP error.
• * Temperature Sensor error.

The LCD EWP/Fan Digital Controller will manage the operation of your chosen EWP or billeted electric water pump by varying the pump’s speed and subsequent coolant flow in response to engine coolant temperature, as well as manage the thermal control of your electric Thermatic engine Fan/s.

The EWP/Fan Digital Controller becomes the engine’s new ‘thermostat’ and now has individual targeted temperature settings from 60°C (140°F) to 110°C (212°F). Programmed by simply pushing a button and holding down to set!

In combination with a Davies, Craig Thermatic Fan, or other electric engine fans, the temperature of the engine’s cooling system can be more precisely controlled. The EWP/Fan Digital Controller will also operate the EWP after ignition/engine shutdown, circulating coolant and rapidly dissipating heat more efficiently to avoid heat-soak.

If the engine temperature cools below the targeted/set temperature, the EWP/Fan Digital Controller will step back from full system voltage back to 12 or 6 volt operation and revert to pulse width modulation (PWM) mode when highway cruising.

Major advances to the updated LCD EWP/Fan Digital Controller are;

Temperature setting is a simple push-button adjustment. Individual set/target temperature options commencing at 60°C to 100ºC (212ºF). The EWP/Fan Digital Controller is factory set at 85ºC (185ºF).

To eliminate heat-soak, a built in automatic time-out feature allows the EWP to circulate engine coolant for up to 3 minutes or till coolant temperate is reduced to -10◦C (-14F) below the set/targeted temperature to eliminate heat-soak after engine shut-down.

Temperature Thermal Sensor - can be mounted into the thermostat housing, top radiator hose or top of the radiator or engine block near the engine coolant outlet.

The LCD EWP/Fan Digital Controller weighs only 90 grams (3.2oz) and can be easily and conveniently mounted anywhere in the driving compartment.

The LCD EWP/Fan Digital Controller can be left at the factory-set 85ºC (185ºF), offering smarter engine warm up and enhanced engine management of the vehicle’s cooling system. Many drivers may prefer to select a higher set point for an even quicker warm-up and greater economy, switching to a cooler engine setting when full power is required. It’s that simple.

Davies, Craig’s updated LCD EWP/Fan Digital Controller continues to be a premium quality product ensuring its increasing range of EWPs will exhibit the ultimate engine cooling experience. The LCD EWP/Fan Controller was designed and developed right here in Australia! The Digital Controller, an EWP and electric Thermatic engine fan/s are three excellent examples of ingenious Australian innovation and design.

Product Selection Guide
Application	Pump Model	Pump Kit		Pump Combo		Controller / Switch
		Part # 12 V	Part # 24 V	Part# 12 V	Part # 24 V	Part # 12 V	Part # 24 V
Motorbike up to 500cc (Standard)	EBP15	9001				0444 or 0455
Motorbike 500cc - 1000cc (Std)	EBP23	9050				0444 or 0455
Motorbike 1000cc - 2000cc (Std)	EBP25	9005				0444 or 0455
Vehicle Heater System (Standard)	EBP23	9050				0444 or 0455
LPG (Butane) System (Standard)	EBP23	9050				0444 or 0455
Intercooler (depending on capacity)	EBP23	9050
	EBP25	9005
	EBP40	9040	9041			0444 or 0455	0444 or 0455
	EWP80	8005		8907
Engines up to 2.0L (Standard)	EWP80	8005		8907		8002	Specifications SKU daviescraig-dc8102 Brand DAVIES CRAIG Shipping Weight 13.0000kg Shipping Width 0.500m Shipping Height 0.200m Shipping Length 0.250m More From This Category $1,095.00 or 4 payments of $273.75 with Info SKU: MEZ-WP100C Meziere Electric Water Pump for Chevy BB, 35GPM Standard Motor - Chrome Add to Cart $132.06 or 4 payments of $33.02 with Info SKU: jrad-JWP0026 Jayrad Water Pump for Falcon XY-XF V8 Add to Cart $230.00 or 4 payments of $57.50 with Info SKU: daviescraig-dc8140 DAVIES CRAIG EWP115 Alloy - 12V 115LPM/30GPM Remote Electric Water Pump (8140) Add to Cart $897.95 or 4 payments of $224.49 with Info SKU: MEZ-WP101U Meziere Electric Water Pump for Chevy SB, 35GPM Standard Motor - Polished Add to Cart $73.01 or 4 payments of $18.25 with Info SKU: jrad-JWP006 Jayrad Water Pump for Landcruiser Add to Cart $139.99 or 4 payments of $35.00 with Info SKU: jrad-JWP0129 Jayrad Water Pump for Navara ST-X D40 3.0LT Diesel V9X 11-15 Add to Cart $96.72 or 4 payments of $24.18 with Info SKU: jrad-JWP0027 Jayrad Water Pump for Hilux RZN167/Prado VZJ95 Add to Cart $69.38 or 4 payments of $17.34 with Info SKU: jrad-JWP0023 Jayrad Water Pump for HT-HZ/Commodore VB-VK V8 Add to Cart Subscribe to our newsletter CONTACT US Unit 12, 8-14, St Jude Crt, BROWN PLAIN , QLD, 4118, AU ( 61) 07 3800 8355 ABN: 58 134 888 154 Follow Us On : Encrypted Checkout CATEGORIES ACCESSORIES AERODYNAMICS BRAKES BOOKS & GIFT CLOTHING COOLING DRIVETRAIN ELECTRONICS ENGINE CATEGORIES EXHAUST FORCED INDUCTION HANDLING INTAKE INTERIOR LIGHTS OEM TYRES WHEELS INFORMATION Terms of Use Privacy Policy Returns Policy SERVICE My Account Track Order Resolution Centre ABOUT US About Us Contact Us Copyright © 2025 CJ MOTOR Contact Us Back to top × Shop Now. Pay Later. Always interest-free. Add your favourites to cart Select Afterpay at checkout Log into or create your Afterpay account, with instant approval decision Your purchase will be split into 4 payments, payable every 2 weeks All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase For complete terms visit afterpay.com/terms
