Established in 1988, SIRUDA high performance gasket is a renowned manufacturer of gasoline/diesel engine gaskets and overhaul kits for all major car brands. Having several decades of professional manufacturing experience, SIRUDA is also well known as the outstanding designer and developer of dies/molds for gaskets.

THE TECHNOLOGIES

Multiple Layer Steel Head Gaskets: This type of gasket has better strength against rebounce and corrosion because it comprises of multi layers of steel.The outer layer is coated with HR-180. It has excellent sealing capability for high power engines.

FLUOROELASTOMER: A Fluoroelastomer is a special purpose synthetic rubber. It has wide chemical resistance and superior performance, especially in high temperature application in different media. HR-180 rubber coated material that is heat-resistant to 250℃ / 482 ℉. HR-180 is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes.

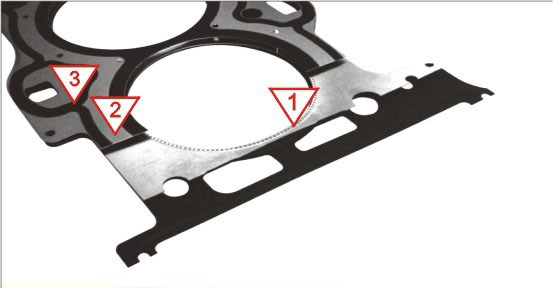

1: Laser Welding. 2: Plastic Resin Coated. 3: HR-180 Rubber Coated Metal

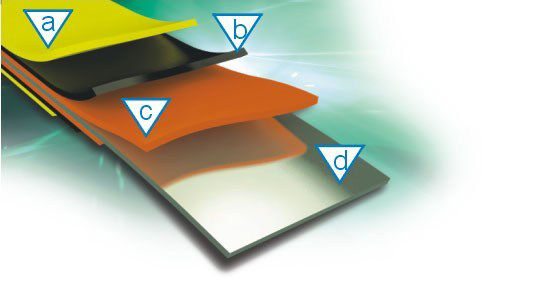

a: Plastic Resin agent. b: Rubber. c: Adhesive. d: Metal

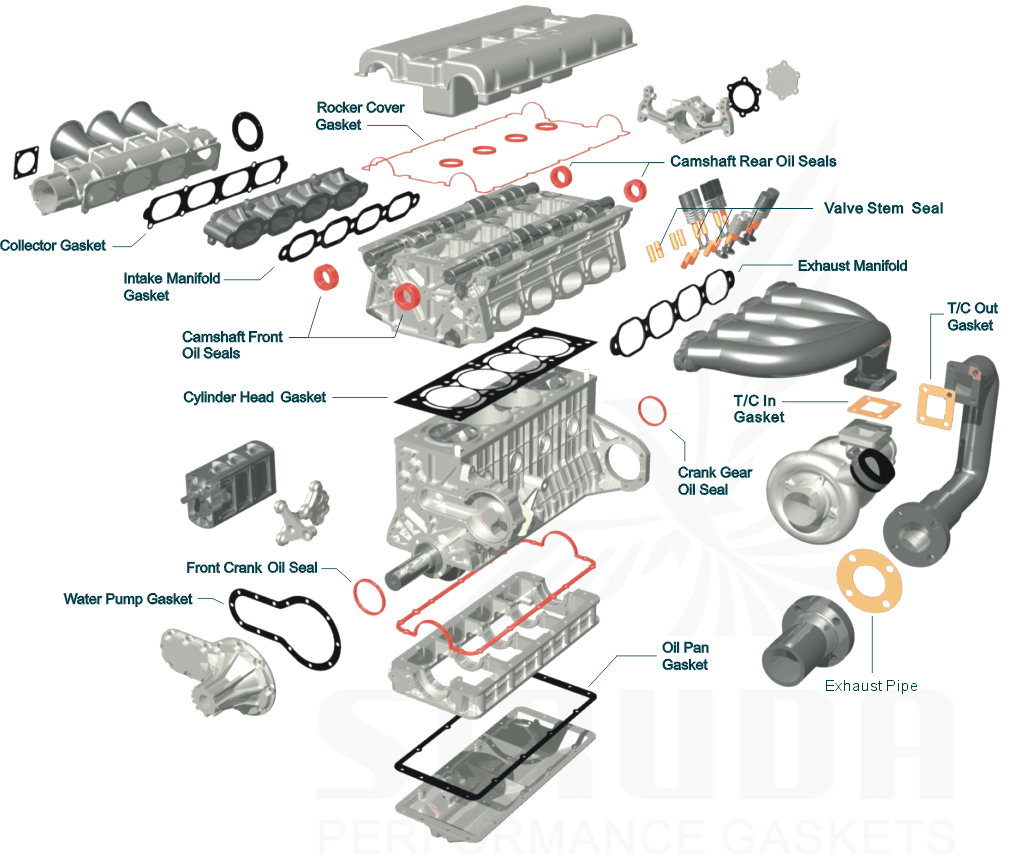

SEALING SOLUTION - Gaskets Used In Automobile Engine

TYPE OF METAL GASKETS

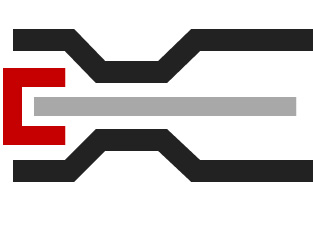

GROMMETS TYPE GASKET

This type of gasket has now become a favorite choice for turbocharged highly powered engines. It endures higher surface pressure and prevents sudden gas leak caused by knocking. Grommets coated with molybdenum prevents scratching . Best sealing capability is achieved by the use of nitrile gum over the gasket surface.

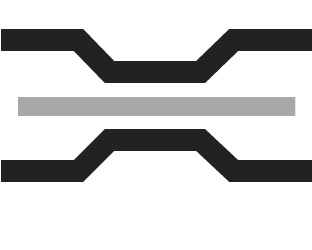

BEAD TYPE GASKET

Due to its specially-designed bead shape and heights, precise control of surface pressure can be achieved.

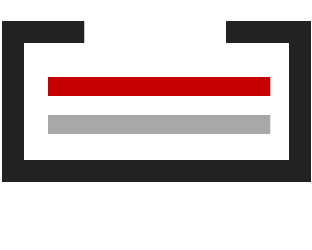

GROMMET TYPE GASKET

High-pressure resistance. Gas leakage through the sides of gasket can be prevented.

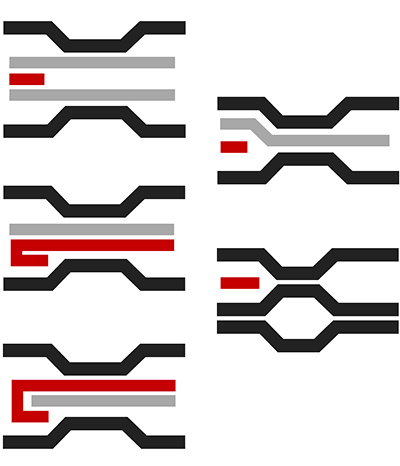

STOPPER TYPE GASKET

Stopper which is sandwiched between layers have good sealing against engine vibration.

This type of gasket is also ideal for installation at narrow locations around the combustion chamber.
