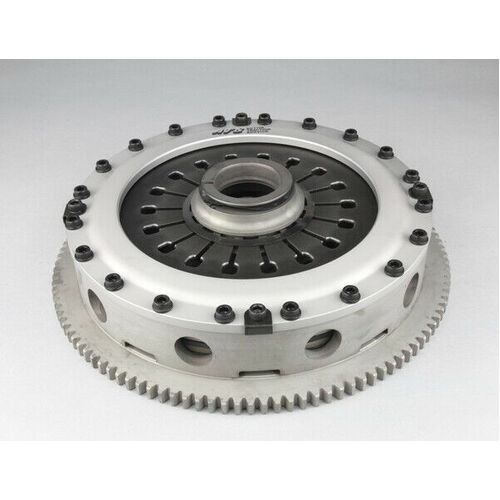

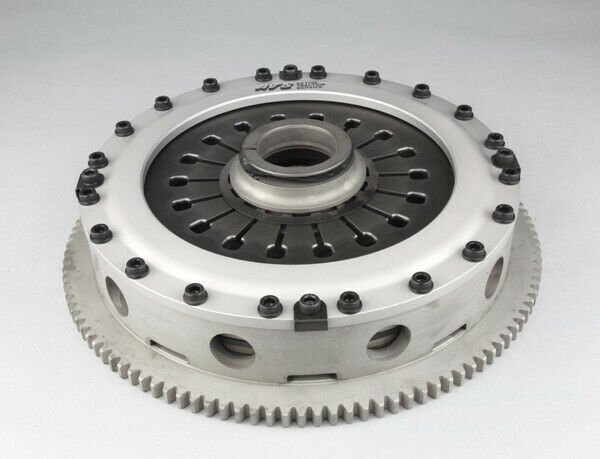

ATS METAL TYPE TRIPLE PLATE PULL TYPE FOR MITSUBISHI EVO 10 4b11 -RPM23H380-13S
ATS METAL TYPE TRIPLE PLATE PULL TYPE FOR MITSUBISHI EVO 10 4b11 -RPM23H380-13S
SKU: RPM23H380-13S

ATS METAL TYPE TRIPLE PLATE PULL TYPE FOR MITSUBISHI EVO 10 4b11 -RPM23H380-13S

ATS

$3,530.00

or 4 payments of $882.50 with Info



In Stock


Calculate Shipping


Australia wide rate - $50.00


Are you sick of heavy pedal effort or harsh engagemnet of performance pull type clutches?? With the world wide patent pending "Double Action Release mechanism", ATS has shattered the conventional pull type clutch concept.


* With theh unique Double Action Release Mechanism, the new pull type cluthces provide an incredibly easy operation for both street and race track.

* Clutch pedal effort is 11kg to 12kg which is slighlty lighter than stock. The pedal effort of the 1,700kg version is 15 % to 20 % heavier than stock.

* The clutch engagement point is in the middle of the pedal stroke and there is not much difference from the stock organic clutch

* Compared to the conventional pull type clutch, the ATS pull type gives the driver a wider engagement (slipping) point for much easier launch

* Crisp and very sharp disengagment

* It comes with ATS wedge collar and you can use the stock throwout bearing (except for Evo 10 for which requires the Evo 9 stock throwout bearing)

Four Excellences

1) Excellent pedal effort (very light) * 1,700kg version has about 20 % heavier pedal effort
2) Excellent clutch engagement
3) Excellent shift feel (quick and crisp)
4) Excellent price (very economical metal clutch)

Torque / Horsepoer capacity
The pull clutch has 1,300kg clamping force. ( 1,700kg clamping force is available for the twins).

  Carbon Metal
Twin 720 HP / 73 kg.m 520 HP / 55kg.m
Twin (1,700kg) 850 HP / 87 kg.m 620 HP / 65kg.m
Triple 1,030 HP / 106kg.m 810 HP / 87kg.m

SKU RPM23H380-13S
Brand ATS
Shipping Weight 30.0000kg
Shipping Width 0.800m
Shipping Height 0.300m
Shipping Length 0.400m
