Description

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications.  Specialized filter media for gas, ethanol and methanol fuels available.  Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish youve come to expect from all Aeromotive components.

High-flow 10-m (absolute) Microglass filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.

• High-flow, 10-micron (absolute) Microglass disposable element.
• Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
• Suitable post filter for up to 32-GPM fuel pumps of all types.
• Flows 9,000 lb/hr (24-GPM) with clean pressure drop less than 2-PSI.
• Flows 12,000 lb/hr (32-GPM) with clean pressure drop less than 3-PSI.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
• Extreme-Flow filters feature a tough, Hard-Coat Black finish.
• 10″ long x 2-5/8″ diameter.
• Replacement element

Additional information

Mounting Configuration: External

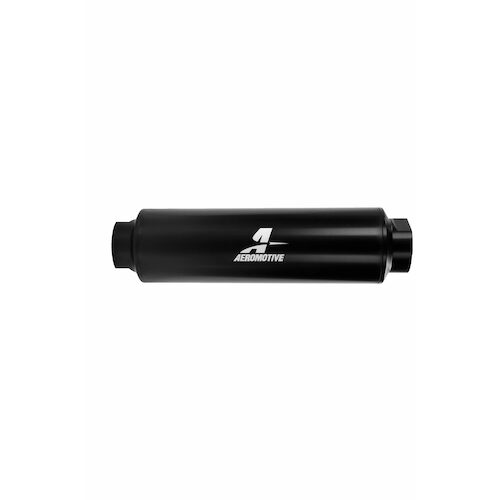

P/N 12364: Extreme Flow 10-m Microglass AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps

High-flow 10-m (absolute) Microglass filter ideal for broad fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.

• High-flow, 10-micron (absolute) Microglass disposable element.
• Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
• Suitable post filter for up to 32-GPM fuel pumps of all types.
• Flows 9,000 lb/hr (24-GPM) with clean pressure drop less than 2-PSI.
• Flows 12,000 lb/hr (32-GPM) with clean pressure drop less than 3-PSI.
• AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
• Extreme-Flow filters feature a tough, Hard-Coat Black finish.
• 10″ long x 2-5/8″ diameter.
• Replacement element
