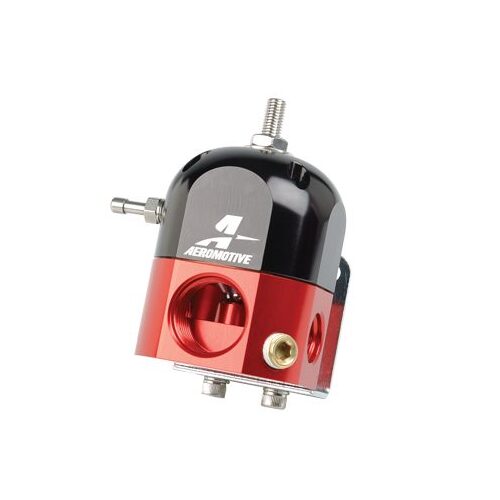

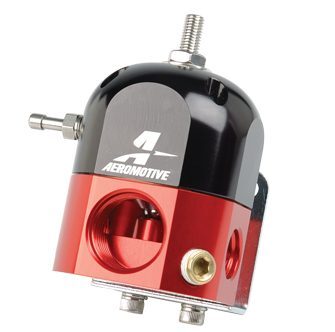

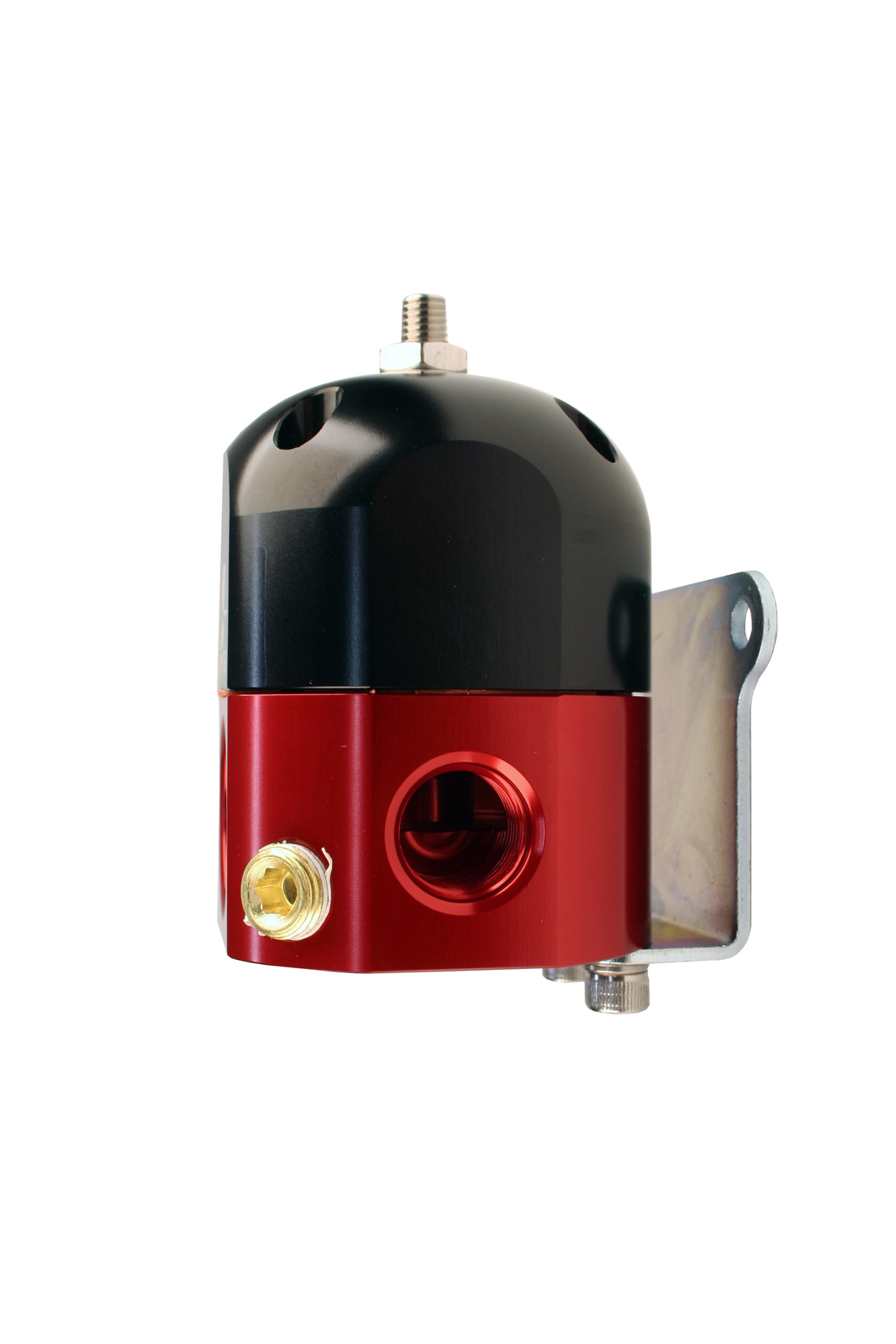

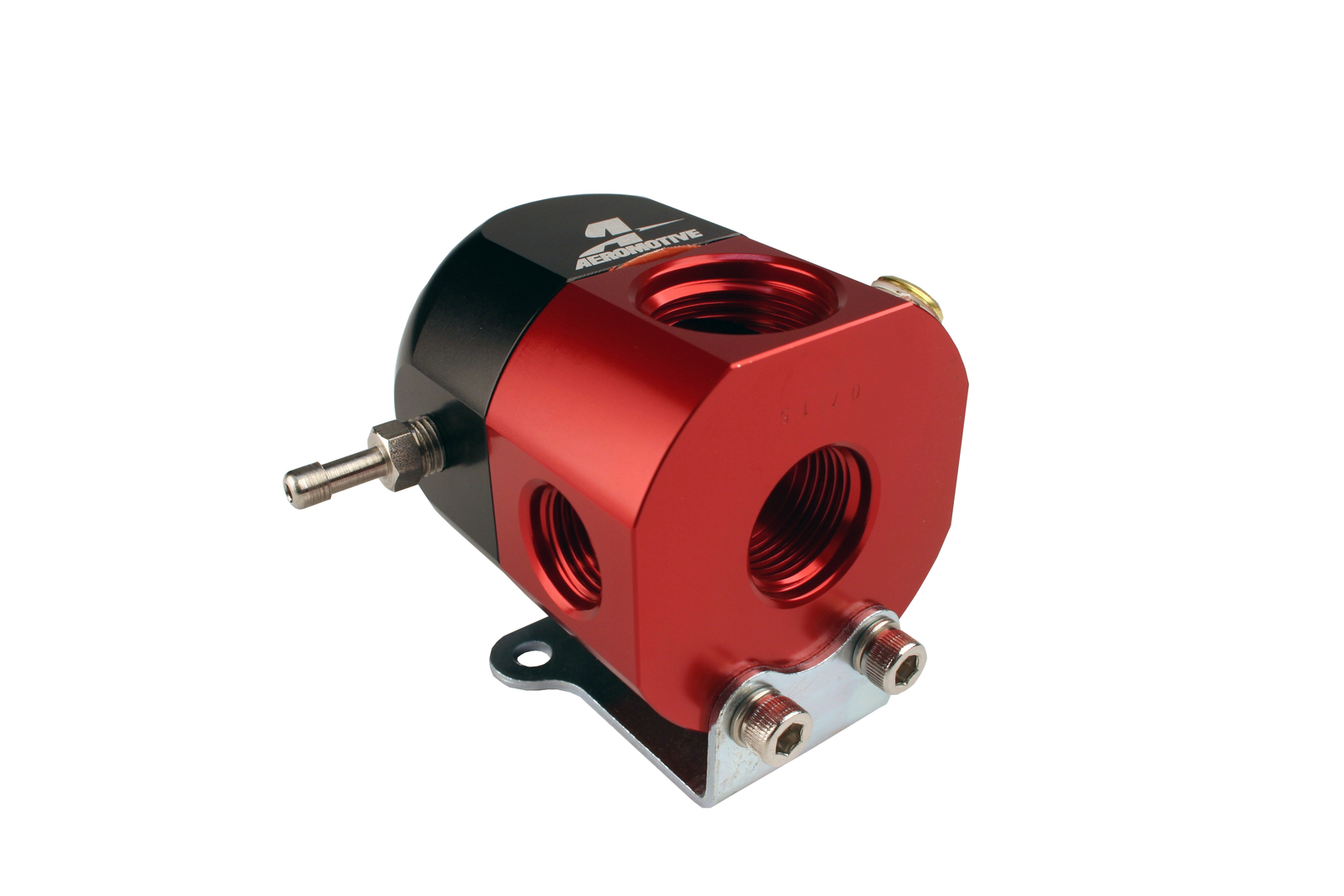

AEROMOTIVE A1000 Carbureted Return Style Regulator(13204)
AEROMOTIVE fuel pressure regulator 13204
Description
Description
The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ‘blow-through’ supercharged engines.
- Base fuel pressure adjustable from 3-15 PSI.
- (1) ORB-10 inlet port and (1) ORB-08 return port.
- P/N 13204 provides (2) ORB-06 outlet ports and 1/8? NPT gauge port.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- return style design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- EFI conversions will require a larger-than-stock return line for proper low pressure control. Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
Additional information
Weight | 1.03 lbs |
---|---|
Dimensions | 7.13 × 5 × 2.25 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 13204: A1000 Carbureted return style Regulator
The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ‘blow-through’ supercharged engines.
- Base fuel pressure adjustable from 3-15 PSI.
- (1) ORB-10 inlet port and (1) ORB-08 return port.
- P/N 13204 provides (2) ORB-06 outlet ports and 1/8? NPT gauge port.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- return style design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- EFI conversions will require a larger-than-stock return line for proper low pressure control.Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
Specifications
SKU | aeromotive-13204 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
