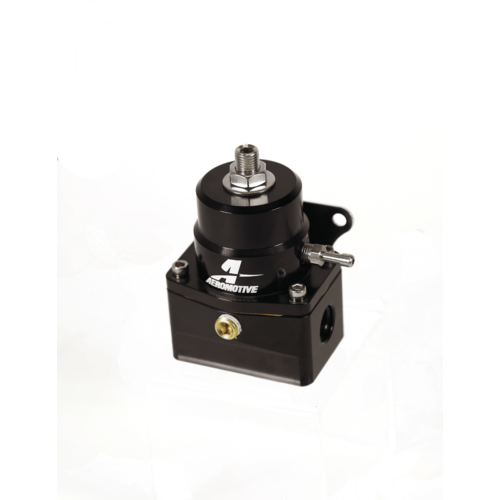

AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))
SKU: aeromotive-13109-b13131

AEROMOTIVE A1000-6 Injected Bypass Regulator (black)(13109-b (13131))

AEROMOTIVE fuel pressure regulator 13109-b (13131)

$398.87

or 4 payments of $99.72 with Info



In Stock


Calculate Shipping


Australia wide rate - $30.00 (ETA: 3 days)


Description

Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive’s high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world!

  • Base pressure adjustable from 40-75 PSI.
  • Gasoline and alcohol compatible.
  • Fuel pressure rises on a 1:1 ratio with boost.
  • 1/8” NPT gauge port.
  • P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.

Additional information

Weight 1.21 lbs
Dimensions 7.13 × 5.00 × 2.25 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower

Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive’s high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world!

– Base pressure adjustable from 40-75 PSI.
– Gasoline and alcohol compatible.
– Fuel pressure rises on a 1:1 ratio with boost.
– 1/8” NPT gauge port.
– P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.View Installation Instructions

SKU aeromotive-13109-b13131
Brand AEROMOTIVE
Shipping Weight 10.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
