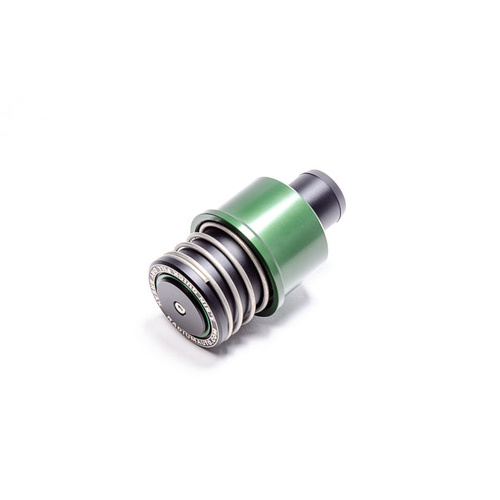

Radium Quick Fill Dump Can - 1.5" Dry Break Filler - Male

Male dry break probe for quick fuel filling with no mess. Engineered by Radium Engineering to connect to dump can fuel jugs, providing synchronized valve operation for leak-free fuel transfer in motorsport applications.

Key Features

• ✓ Male dry break probe for dump can fuel jugs
• ✓ Synchronized valve timing prevents fuel leaks during connection/disconnection
• ✓ Anodized aluminum construction with stainless steel hardware
• ✓ 1.5" OD barb for secure hose connection
• ✓ Compatible with all fuel types (gasoline, diesel, AV gas, methanol, ethanol, E15, E85)
• ✓ Compatible with Radium 20-0535 DSV Valve for automatic shutoff when full
• ✓ Professional-grade motorsport component
• ✓ Compatible with other 1.5" dry break systems

Technical Specifications

• Application: Universal - dump can fuel jugs
• Part Number: 20-0496
• Construction: Anodized aluminum with stainless steel hardware
• Size: 1.5" dry break
• Barb Size: 1.5" OD
• Fuel Compatibility: Gasoline, diesel, AV gas, methanol, ethanol, E15, E85

Applications

Ideal for motorsport applications requiring fast, leak-free fuel filling from dump cans. Perfect for race cars, rally cars, or any competition vehicle requiring quick refueling with no spillage.

System Operation

When the male probe connects to a female dry break receiver (sold separately), both valve seals open and close with synchronized timing, permitting no fuel leaks. When used with the Radium DSV Valve (20-0535), vented air flow is automatically shut down when the tank is full, eliminating the need to monitor the filling process.

Important Note: Female dry break receiver sold separately. Compatible with Radium and other 1.5" dry break systems.
