If the 20-0461 Fuel Level Switch is used, this 20-0508 Fuel Level Diagnostic Indicator can be used as a visual reference for fuel level. When the fuel level switch is triggered, the signal is sent directly to this LED. While often not practical to be viewed while driving, this indicator can be used for diagnosing a potential fueling issue.

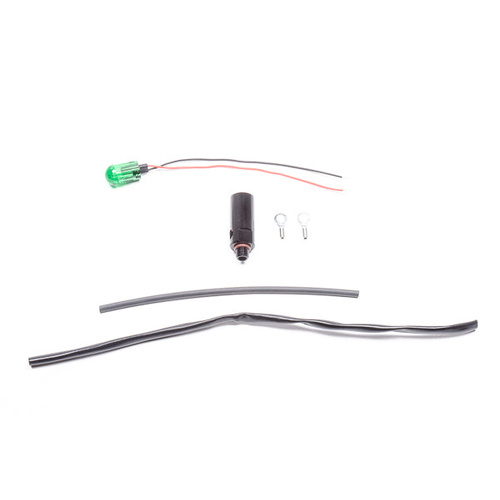

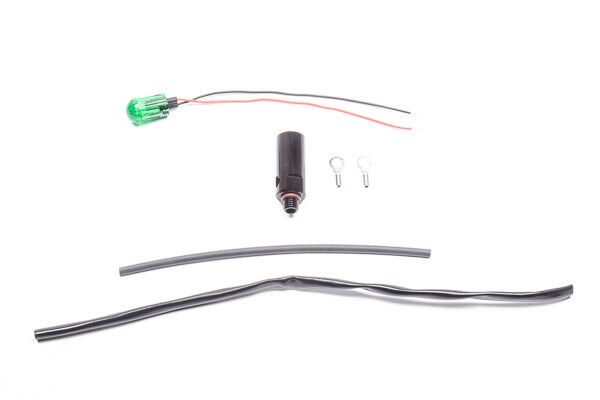

The 20-0508 kit includes the parts pictured. Soldering is required.

NOTES:

• A 2AN ORB (5/16"-24) threaded port is required for installing.
• If stacking on top of the fuel level switch (as pictured above) the panel thickness must be 0.75" minimum.
