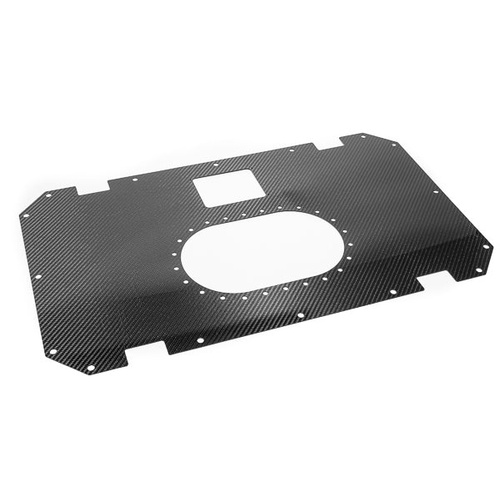

This optional carbon fiber lid is 68% lighter than the powdercoated aluminum lid that comes standard with all Radium Engineering fuel cells.

Features:

• Construction: Dry Carbon
• Fabric: Pre-impregnated
• Tow: 3K Filaments Per Fiber
• Weave: 2x2 Twill
• Manufactured: USA

NOTES:

• This product is currently only available for 10 and 14 gallon RA-series fuel cells.
• Discontinued 15 gallon RA-Series Fuel Cells are compatible with 13-0410-01.
• If purchasing with a fuel cell, this product will come in a separate box and will need to be installed by the end user.
• The standard Radium Engineering aluminum lid cannot be exchanged.
• Follow the instructions below for installing this lid.

Installation:

• a. If removing a drop-in fuel pump assembly, such as an FCST, reference those specific instructions.
• b. Use a 5/32" (or 4mm) Allen wrench for the stainless steel button head bolts.
• c. Use a 7/16" wrench for the flange head nuts underneath the perimeter bolts.
• d. For the Phillips head screws that secure the inspection plate, use a micro screwdriver.
• e. Be careful not to overtighten any bolts that could crack the carbon fiber resin.
