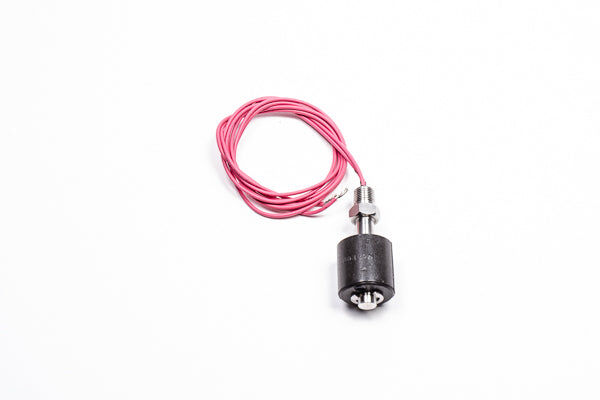

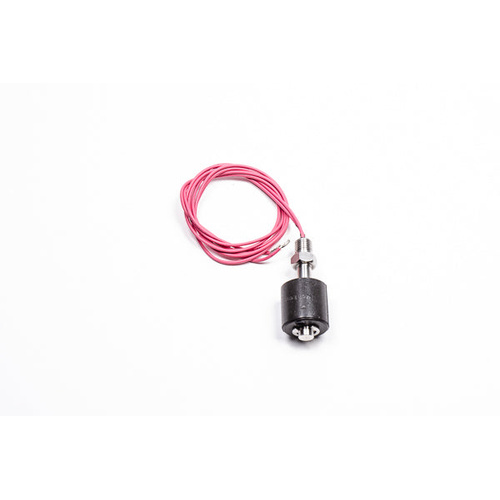

Radium Fuel Level Switch, 1/8" NPT

Universal fuel level switch with 1/8" NPT thread for fuel tank monitoring. Engineered by Radium Engineering to provide a switched signal when fuel level drops, enabling dashboard indicators or ECU inputs for safety and monitoring purposes.

Key Features

• ✓ 1/8" NPT threaded installation for universal fitment
• ✓ Stainless steel construction for corrosion resistance
• ✓ Compatible with all fuel types including E85
• ✓ Reversible polarity by removing E-clip and flipping float
• ✓ 24" long, 20AWG flying leads for easy wiring
• ✓ Switched signal output for dashboard indicators or ECU inputs
• ✓ Professional-grade motorsport component
• ✓ Simple installation - no special tools required

Technical Specifications

• Application: Universal - fuel tank level monitoring
• Part Number: 20-0461
• Thread Size: 1/8" NPT
• Construction: Stainless steel
• Wire Length: 24" (20AWG flying leads)
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for custom fuel systems, surge tanks, or fuel cells requiring low fuel level monitoring. Perfect for motorsport applications where fuel level warnings are critical for safety and performance.

Important Installation Notes

• Must be installed inside the fuel container
• Polarity can be reversed by removing E-clip and flipping float
• 1/8" NPT threaded port required for installation
• Always apply PTFE thread sealant paste to tapered pipe threads
