Mandated by the FiA, fuel cell foam is used both as an explosion suppressant as well as baffling. This reticulated foam is manufactured from polyurethane and meets MIL-DTL-83054C Type-II. At 15 pores per inch (nominal), it displaces only 0.07 gallons (or 9oz) of fuel per foam piece.

After every race season, inspect the condition of fuel cell foam and replace at least every 3 seasons. While it was designed for longevity in hydrocarbon fuels, Radium has also performed thorough testing with high content alcohol fuels (ethanol and methanol). These test have shown no signs of foam deterioration. However, it is advised to do more frequent inspections as alcohol could potentially shorten the foam life span.

BENEFITS

• Limits fuel aeration for starvation protection insuring constant delivery to the pickup.
• Keeps weight transfer to a minimum during cornering, acceleration, and braking.
• Displaces fuel vapors, reducing explosion potential.

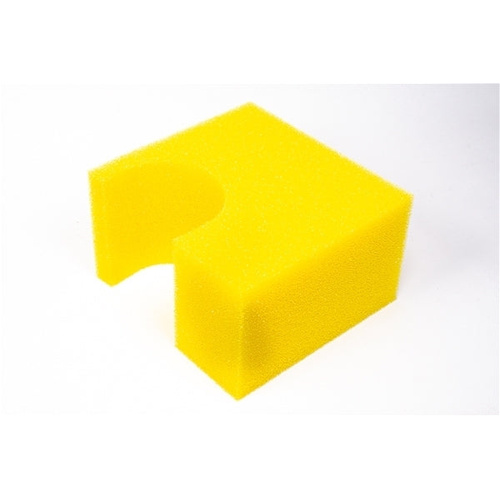

18-0074 (SOLD INDIVIDUALLY)

The is a universal block of fuel cell foam that can be custom fit in fuel surge tanks, OEM gas tanks, fabricated fuel tanks, etc.

Dimensions:

• 12.5" x 7.0" x 4.7" (or 318mm x 178mm x 119mm)
