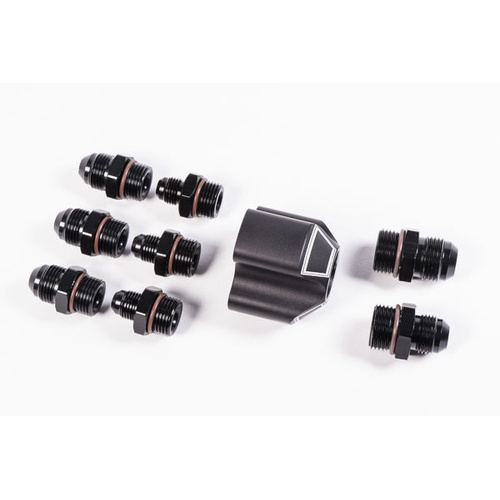

Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings

CNC-machined fuel distribution block with three 8AN ORB ports and one 10AN ORB port. Engineered by Radium Engineering to provide the most direct path for unrestricted fuel flow in high-performance fuel systems with versatile plumbing configurations.

Key Features

• ✓ CNC-machined 6061 aluminum construction
• ✓ Three 8AN ORB female ports on one side
• ✓ One 10AN ORB female port on opposing side
• ✓ Includes complete fitting kit for 6AN-8AN-10AN combinations
• ✓ Anodized finish for corrosion resistance
• ✓ Compatible with all fluids: alcohol, gasoline, coolant, water, air, oil
• ✓ Universal fitment for custom fuel system plumbing
• ✓ Professional-grade motorsport component

Technical Specifications

• Application: Universal - fuel system distribution
• Part Number: 20-0237
• Construction: CNC-machined 6061 aluminum
• Ports: 3x 8AN ORB female, 1x 10AN ORB female
• Finish: Anodized for corrosion resistance
• Fluid Compatibility: Gasoline, E85, alcohol, coolant, water, air, oil

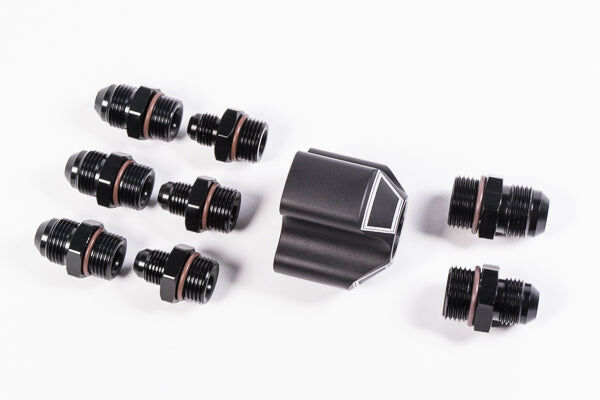

Includes

• Aluminum threaded distribution block (x1)
• 8AN ORB to 6AN male fitting (x3)
• 8AN ORB to 8AN male fitting (x3)
• 10AN ORB to 8AN male fitting (x1)
• 10AN ORB to 10AN male fitting (x1)

Applications

Ideal for custom high-performance fuel systems requiring distribution from a single large feed line to multiple smaller lines. Perfect for fuel rail plumbing, surge tank installations, or any application requiring versatile AN fitting configurations.

Installation Note: Use oil lubrication on O-rings prior to installing fittings for proper sealing.
