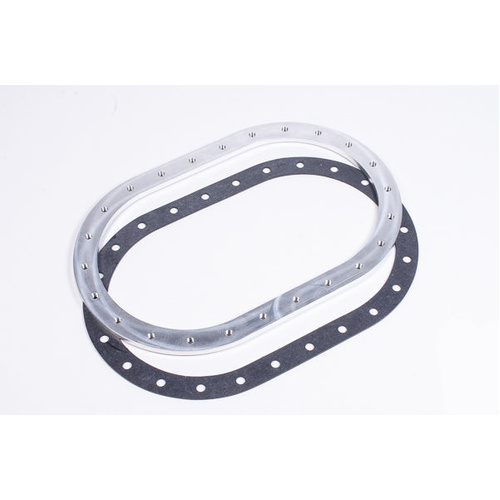

Radium Fuel Cell 24 Bolt Weld Flange with Gasket

24-bolt weld flange for 6x10 inch fuel cells with Viton gasket. Engineered by Radium Engineering to provide a professional, leak-free mounting solution for fuel cell installations in motorsport and high-performance applications.

Key Features

• ✓ CNC-machined from 6061 billet aluminum
• ✓ Flycut to 0.24" thickness for precise fitment
• ✓ 24-bolt pattern for secure, leak-free installation
• ✓ Includes Radium 18-0015 6x10 24-bolt Viton gasket
• ✓ Professional-grade motorsport component
• ✓ Anodized finish for corrosion resistance
• ✓ Universal fitment for 6x10" fuel cells

Technical Specifications

• Application: Universal - 6x10" fuel cells
• Part Number: 20-0278
• Construction: CNC-machined 6061 billet aluminum
• Thickness: 0.24" (flycut)
• Bolt Pattern: 24-bolt
• Size: 6x10 inches
• Includes: Weld flange, Viton gasket (18-0015)

Applications

Ideal for custom fuel cell installations in motorsport and high-performance applications. Perfect for race cars, drift cars, or any build requiring professional fuel cell mounting with reliable, leak-free sealing.

Important Note: Weld flange requires professional welding for installation. Fuel cell not included.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.
