Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+
Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+
SKU: 20-1074

Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+

$1,047.00

or 4 payments of $261.75 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Radium Fuel Pump Hanger Suit Walbro 460/525/535 - Subaru BRZ ZD8 & Toyota GR86 ZN8 22+

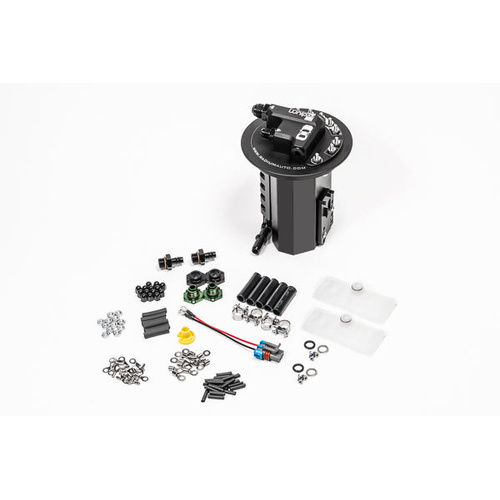

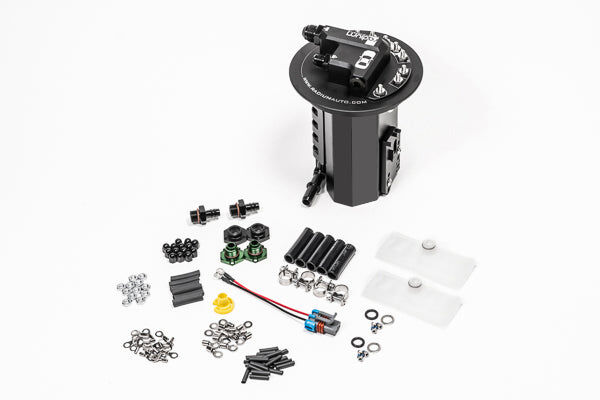

Complete fuel pump hanger assembly engineered by Radium Engineering for Subaru BRZ ZD8 and Toyota GR86 ZN8 (2022+). This redesigned hanger completely replaces the factory in-tank fuel pump module, allowing installation of one or two Walbro 460/525/535 series aftermarket fuel pumps while retaining the OEM fuel level sender for factory gauge functionality.

Compatibility

  • Subaru BRZ ZD8 (2022+)
  • Toyota GR86 ZN8 (2022+)

Compatible Fuel Pumps

  • Walbro F90000460 (460 LPH)
  • Walbro F90000525 (525 LPH)
  • Walbro F90000535 (535 LPH)

Key Features

  • ✓ Complete replacement for factory fuel pump module
  • ✓ Supports single or dual Walbro 460/525/535 pump configurations
  • ✓ Retains OEM fuel level sender for factory gauge operation
  • ✓ Improved fuel collection design
  • ✓ CNC-machined billet aluminum construction
  • ✓ Easy installation with factory mounting points
  • ✓ Professional-grade motorsport component
  • ✓ E85 and all fuel types compatible

Technical Specifications

  • Application: Subaru BRZ ZD8 / Toyota GR86 ZN8 (2022+)
  • Part Number: 20-1074
  • Pump Capacity: Single or dual pump configuration
  • Compatible Pumps: Walbro F90000460/525/535
  • Construction: CNC-machined billet aluminum
  • Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for Subaru BRZ ZD8 and Toyota GR86 ZN8 builds requiring high-flow fuel delivery for naturally aspirated or forced induction applications. Perfect for high-performance street, track, or motorsport builds where reliable fuel supply is critical for FA24 engine performance.

Benefits

  • Complete factory module replacement simplifies installation
  • Dual pump capability supports high-horsepower applications
  • Retains OEM fuel level sender maintains factory functionality
  • Improved fuel collection ensures consistent supply
  • CNC-machined precision ensures reliable operation
  • Compatible with all fuel types including E85
  • Professional motorsport-grade construction

Important Notes: Aftermarket fuel pressure regulator required (sold separately). Aftermarket fuel filter required (sold separately). Fuel pumps sold separately. Designed specifically for 2022+ Toyota GR86 and Subaru BRZ fuel tanks.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.

SKU 20-1074
Brand RADIUM
Shipping Weight 3.0000kg
