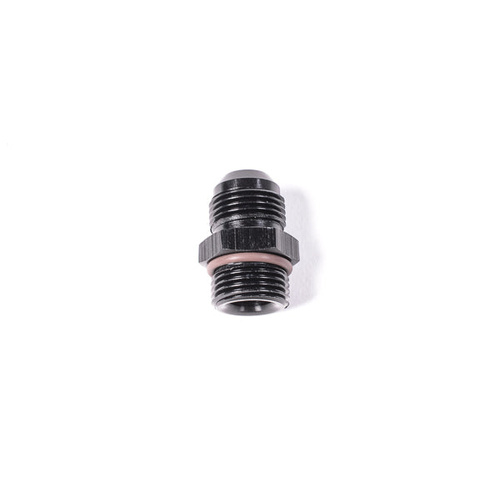

Radium AN ORB to Male AN Flare Fitting

AN ORB to male AN flare adapter fitting engineered by Radium Engineering for fuel system and plumbing applications. This precision-machined fitting converts AN ORB (O-Ring Boss) ports to male AN flare connections, providing versatile plumbing options for fuel rails, surge tanks, regulators, and other automotive applications.

Available Part Numbers

• 14-0130: 10AN ORB to 6AN Male Flare
• 14-0131: 10AN ORB to 8AN Male Flare
• 14-0132: 10AN ORB to 10AN Male Flare
• 14-0151: 8AN ORB to Male 6AN Flare
• 14-0152: 8AN ORB to Male 8AN Flare
• 14-0153: 8AN ORB to Male 10AN Flare
• 14-0195: 6AN ORB to Male 6AN Flare
• 14-0245: 6AN ORB to Male 8AN Flare

Key Features

• ✓ Converts AN ORB to male AN flare
• ✓ Precision-machined construction
• ✓ Multiple AN sizes available (6AN, 8AN, 10AN ORB)
• ✓ Multiple flare sizes (6AN, 8AN, 10AN flare)
• ✓ O-ring included for reliable sealing
• ✓ No PTFE paste or thread sealant required
• ✓ Professional-grade motorsport component
• ✓ Universal fitment

Technical Specifications

• Part Numbers: 14-0130, 14-0131, 14-0132, 14-0151, 14-0152, 14-0153, 14-0195, 14-0245
• Connection Type: AN ORB to male AN flare
• Available ORB Sizes: 6AN, 8AN, 10AN
• Available Flare Sizes: 6AN, 8AN, 10AN
• Includes: O-ring
• Application: Universal

Applications

Ideal for connecting AN flare hoses to fuel rails, surge tanks, fuel pressure regulators, and other components with AN ORB ports. Perfect for motorsport, track, or high-performance street builds where versatile plumbing connections are required.

Benefits

• Enables AN flare hose connection to ORB ports
• Precision-machined for reliable sealing
• Multiple ORB and flare size combinations accommodate various applications
• O-ring sealing eliminates need for thread sealant
• Compatible with fuel system components
• Professional motorsport-grade construction

Important Notes: These threaded adapter fittings are compatible with AN ORB (O-ring boss) ports. Because the threads on these fittings are not used for sealing, PTFE paste or thread sealant is not required. The O-ring should be lubricated with engine oil. ORB ports are an industry standard and found on many automotive plumbing products, including most Radium products. All fittings include O-rings.
