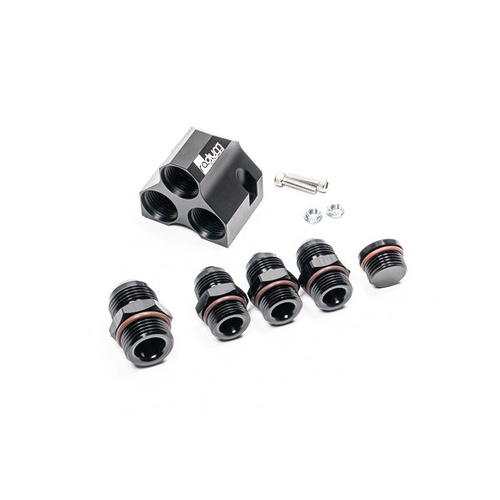

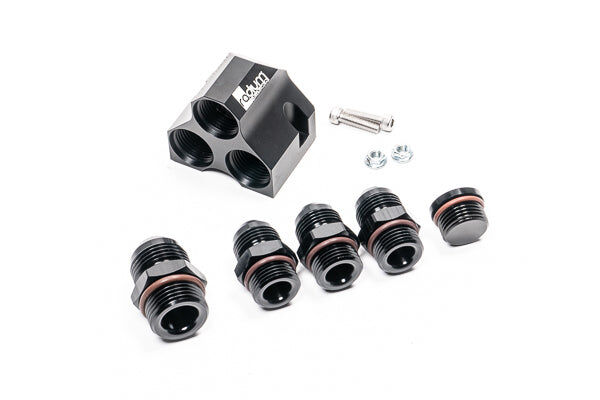

Radium Distribution Block 3 x 10AN ORB to 1 x 12AN ORB w/Fittings

Radium Distribution Block 3 x 10AN ORB to 1 x 12AN ORB w/Fittings

Complete distribution block assembly engineered by Radium Engineering to split one 12AN ORB inlet into three 10AN ORB outlets. This CNC-machined billet aluminum block includes all necessary fittings, providing a professional solution for distributing fuel, oil, or other fluids in high-performance systems.

Key Features

• ✓ 1 x 12AN ORB inlet to 3 x 10AN ORB outlets
• ✓ Complete assembly with all fittings included
• ✓ CNC-machined billet aluminum construction
• ✓ FKM (Viton) O-rings for all oil and fuel types
• ✓ Anodized finish for corrosion resistance
• ✓ E85 and all fuel types compatible
• ✓ Professional-grade motorsport component
• ✓ Compact design for tight installations

Technical Specifications

• Application: Universal - fuel/oil distribution
• Part Number: 20-0737
• Inlet: 1 x 12AN ORB (3/4"-16 O-Ring Boss)
• Outlets: 3 x 10AN ORB (7/8"-14 O-Ring Boss)
• O-Rings: FKM (Viton)
• Construction: CNC-machined billet aluminum
• Includes: All necessary fittings
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for distributing fuel or oil from a single source to multiple destinations in high-performance systems. Perfect for fuel systems requiring distribution to multiple fuel rails, oil systems with multiple feed points, or any application requiring one inlet to three outlet distribution.

Benefits

• Complete assembly eliminates need to source individual components
• CNC-machined precision ensures leak-free operation
• FKM (Viton) O-rings compatible with all fuel and oil types
• Compact design ideal for tight clearance applications
• All fittings included for immediate installation
• Anodized finish provides long-term durability
• Professional motorsport-grade construction

Important Note: Complete assembly includes all necessary fittings. Features FKM (Viton) O-rings for compatibility with all oil and fuel types including E85.
