Radium Fuel Hanger Return - Mitsubishi Evo X

Fuel hanger return kit engineered by Radium Engineering for Mitsubishi Lancer Evolution X. This comprehensive kit provides all necessary PTFE hose, AN fittings, and hardware to convert the OEM Evo X fuel feed line to be used as the return line, replacing the restrictive factory 1/4" (6.5mm) OEM return hose for proper regulator function.

Compatibility

• Mitsubishi Lancer Evolution X (2008-2015)

Key Features

• ✓ Converts OEM feed line to return line
• ✓ Replaces restrictive 1/4" OEM return hose
• ✓ -6AN PTFE return hose included
• ✓ SAE quick connect fittings for easy installation
• ✓ Stainless steel cushion clamp included
• ✓ E85 and all fuel types compatible
• ✓ Professional-grade motorsport component

Technical Specifications

• Application: Mitsubishi Lancer Evolution X
• Part Number: 20-0249
• Fuel Compatibility: Gasoline, E85, and alternative fuels

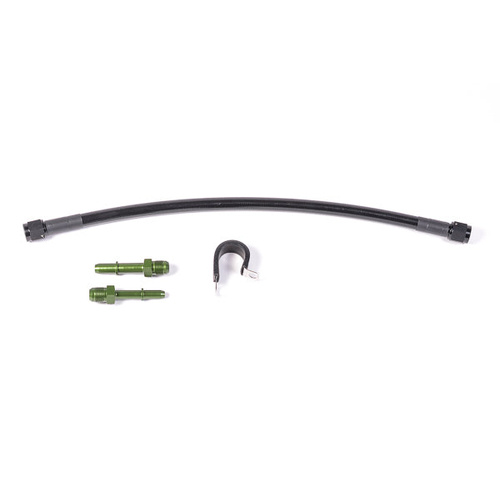

• Includes: -6AN PTFE hose, SAE quick disconnect fittings (x2), stainless steel cushion clamp

Applications

Ideal for Mitsubishi Evo X builds using Radium fuel hangers requiring proper return line sizing for aftermarket fuel systems. Perfect for high-performance street, track, or motorsport applications where proper fuel regulator function is critical for 4B11T turbocharged engine performance. Designed to work with Radium Direct Mount Regulator (20-0223-xx) when mounted in the top port of a Radium fuel rail.

Benefits

• Replaces restrictive factory return line for proper regulator function
• -6AN PTFE hose provides superior flow capacity
• SAE quick connect fittings enable easy, leak-free installation
• PTFE material compatible with all fuel types including E85
• Stainless steel clamp provides secure mounting
• Complete kit eliminates need to source individual components
• Professional motorsport-grade construction

Important Note: Designed for use with Radium Direct Mount Regulator (20-0223-xx) when mounted in the top port of a Radium fuel rail. Complete kit includes all necessary components for installation.
