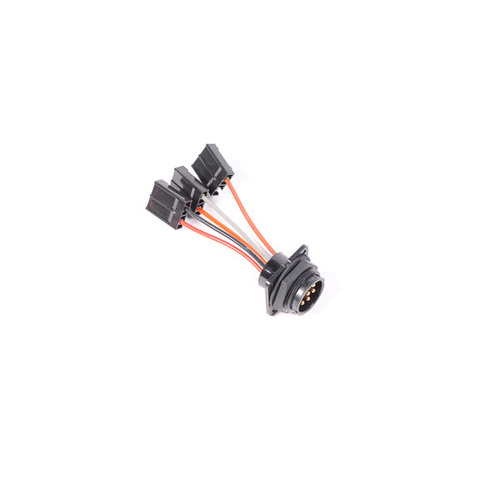

Radium Internal Bulkhead Harness, Triple Walbro 255 Pumps

Internal triple pump bulkhead harness engineered by Radium Engineering for fuel surge tanks and fuel cells. This professional-grade harness features 10" long 10AWG TXL insulated wires with a sealed bulkhead connector, providing reliable electrical connections for triple Walbro 255 fuel pump installations.

Key Features

• ✓ Internal harness with bulkhead connector
• ✓ 10" long 10AWG TXL insulated wires
• ✓ Sealed bulkhead connector with gasket
• ✓ Triple Walbro 255 fuel pump configuration
• ✓ Professional motorsport-grade construction
• ✓ Compatible with Radium fuel surge tanks and fuel cells

Technical Specifications

• Part Number: 17-0027
• Wire Length: 10" (254mm)
• Wire Gauge: 10AWG TXL insulated
• Panel Thickness: 0.06-0.18 inches (1.5-4.6mm)
• Pump Configuration: Triple Walbro 255 pumps
• Includes: Internal harness, bulkhead connector, gasket

Applications

Ideal for custom fuel surge tank and fuel cell installations requiring internal triple Walbro 255 pump wiring. Perfect for motorsport, track, or high-performance street builds where reliable electrical connections are critical for triple fuel pump operation.

Benefits

• 10" wire length optimized for internal surge tank routing
• 10AWG TXL wire handles high current loads
• Sealed bulkhead connector prevents moisture ingress
• Gasket ensures leak-free panel mounting
• Professional motorsport-grade construction
• Compatible with Radium external harnesses for complete bulkhead connection

Important Notes: For complete bulkhead mating connection, select one internal and one external harness. All panels must be 0.06-0.18 inches thick. Gasket included for sealing against panel surface. If wiring to a Radium Engineering external harness, refer to pinout diagrams.
