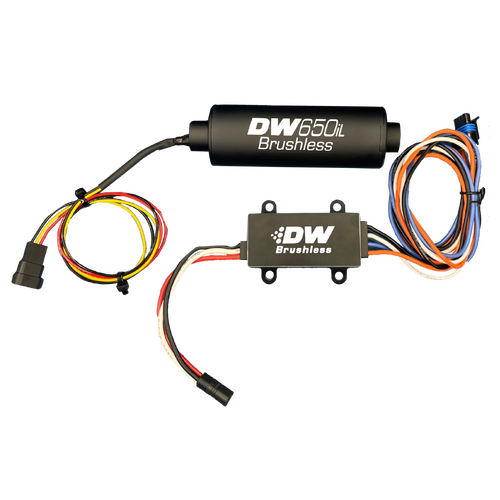

Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller
Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller
Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller
Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller
SKU: DW-9-650-C105

Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller

$1,409.95

or 4 payments of $352.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $40.00


item: Deatschwerks DW650iL 650LPH Brushless In-Line Fuel Pump with Single-Speed/Dual-Speed Controller

Description

The DW650iL brings brushless technology to DW's line of in-line fuel pumps.

Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow.

This version comes with C105 Single-Speed/Dual Speed Controller. Single-Speed is the simple 100% duty cycle "constant on", Dual-Speed allows you to operate the DW650iL Brushless at low duty cycle during normal driving conditions and full duty cycle during high load conditions.

Specifications

  • 650 Litres per Hour (see Tech Sheet for detailed information)
  • Weight: 622 grams (22 oz)
  • External Materials: Hard Anodised Aluminium
  • Inlet Fitting: -8AN ORB
  • Outlet Fitting: -8AN ORB
  • Impeller Design: Positive Displacement Screw
  • Min Voltage Input: 8 Volts
  • Max Voltage Input: 26 Volts
  • Current Draw 40psi: 7.6 Amps (13.5v)
  • This pump does not have an internal check valve
  • Optional In-Tank Install Kit Available (SKU: 9-0950)

What's Included

  • DW650iL Brushless Fuel Pump
  • C105 Single-speed/Dual-speed controller

Compatibility

  • Universal

SKU DW-9-650-C105
Brand DEATSCHWERKS
Shipping Weight 3.0000kg
Shipping Width 0.750m
Shipping Height 0.300m
Shipping Length 0.400m
