SKU: 918253

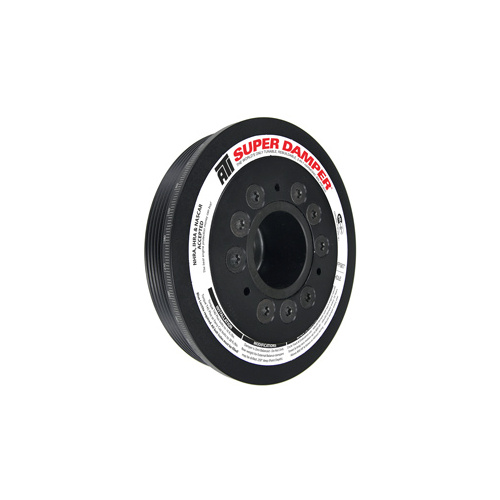

ATI SUPER DAMPER PULLEY FOR MITSUBISHI EVO 10 4B11 CZ4A
Description
Super Damper® Harmonic Dampers
Mitsubishi Super Dampers
The patented ATI Super Damper is the only damper designed exclusively for high performance engines.
4G63 Evolution 8 & 9 Super Dampers ATI has designed a 6.325” damper -- Part # 918250 -- for the Mistubishi Evolution VIII & IX 4G63 for high horsepower street & race use. This new design is a direct replacement for the stock OEM damper. The heart of this unit is the tried and true “damper within a damper” design that has put ATI ahead of the rest. The outer shell is machined to utilize the factory serpentine belt set-up and mounts to the factory crank via a custom hub which replaces the stock timing gear. The damper's outer diameter is 12% larger than OEM. The factory lower timing cover will need to be trimmed for hub clearance. 4G63 & 4G64 DSM (Eclipse, Eagle Talon, Plymouth Laser) ATI has also designed a 6.325” damper -- Part # 918251 -- for the Mistubishi Eclipse, DSM 4G63 & 4G64 for high horsepower street & race use. This new design is a direct replacement for the stock OEM damper. The outer shell is machined to utilize the factory belt set-up and mounts to the factory crank via a custom hub which replaces the stock timing gear. The damper's outer diameter is 12% larger than OEM. The factory lower timing cover will need to be trimmed for hub clearance. |
ALUMINUM SHELL
|
CRANKSHAFT HUB
PART NUMBERS |
|||||
7.074" | 6.325" | 5.67" | ||||
2 RING
|
3 RING
|
STEEL
|
STEEL WITH
INNER SHELL |
|||
TOTAL WEIGHT
INERTIA WEIGHT |
3.75 lbs
2.20 lbs |
3.90 lbs 2.40 lbs |
3.60 lbs
2.20 lbs |
|||
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS | ||||||
Eclipse DSM - 4G63 & 4G64 [1, 2] | 916025 | -- | ||||
Evo 8 & 9 - 4G63 [2, 3] |
|
|
916025 | -- | ||
Evo 10 - 4B11T |
3% UD
|
-- | 916123 | |||
RACE VERSION
|
916399 | -- |
Specifications
SKU | 918253 |
Brand | ATI RACING |
Shipping Weight | 6.0000kg |
Shipping Width | 0.250m |
Shipping Height | 1.300m |
Shipping Length | 0.250m |
