SKU: 143059

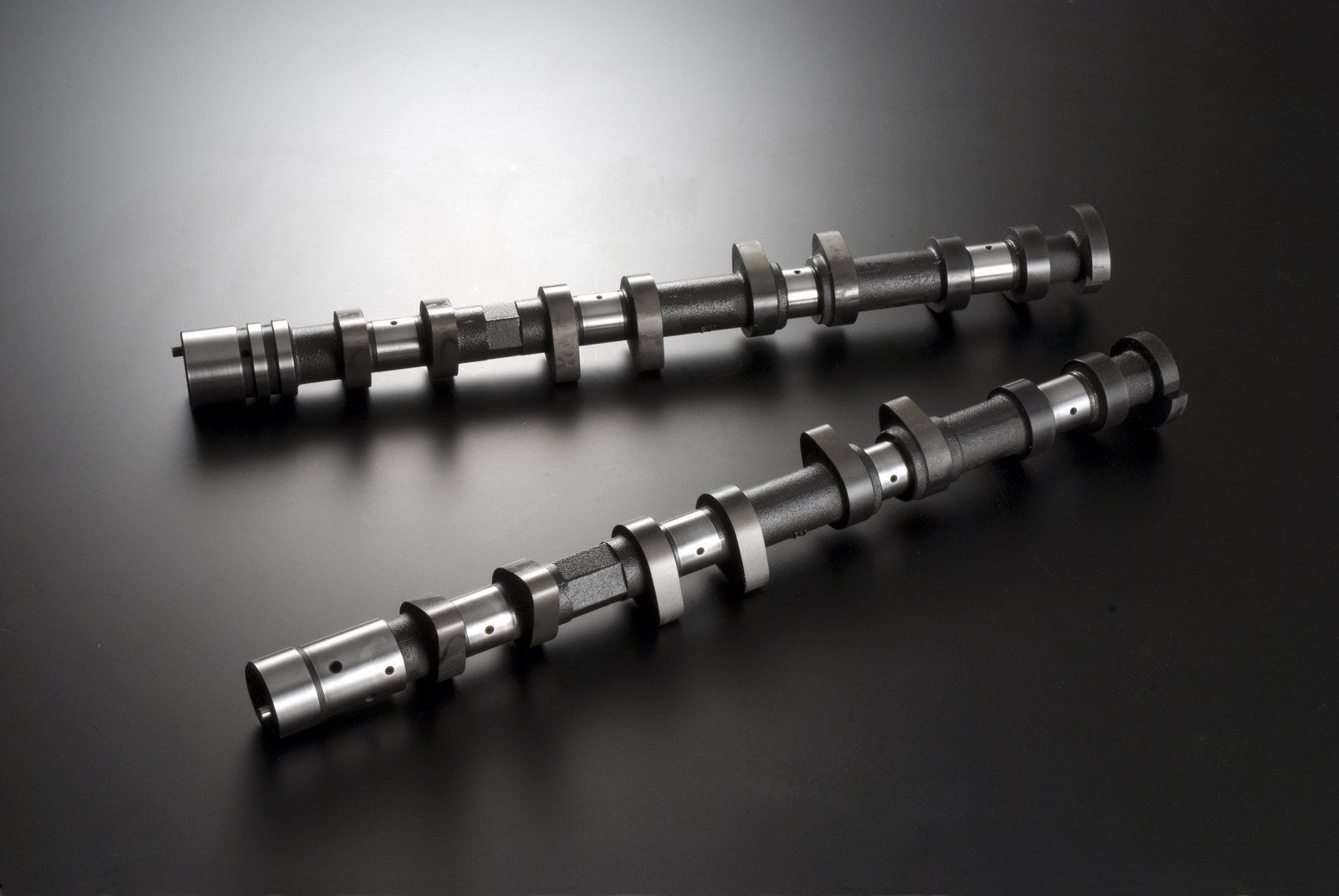

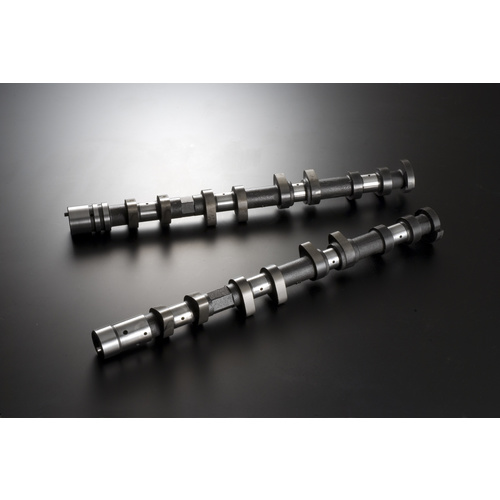

TOMEI PONCAM FOR MITSUBISHI EVO X 4B11

$957.39

or 4 payments of $239.35 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

4B 11 Pon cam TYPE-R for MITSUBISHI EVO 10

(It is sold in one set IN / EX 2 sets)

IN / EX Duration of operation (degree) Maximum
cam lift
(mm)
Maximum
valve lift
(mm)
Cooling valve
clearance
(mm) 【± 0.01】
Baltai
initial set value
central angle (degrees)
Base circle
(φ)
IN 260 10.30 10.10 0.20 112 34.4
EX 250 9.80 9.50 0.30 120 36.4

Conform Set part number   Single item number
4B11 143059   IN 146 C260103
EX 146 D 250098

■ Mobec setting is necessary to derive the performance of Pon cam TYPE-R for 4B11.
4B 11 PONCAM TYPE-R
recommended valve timing
Below is

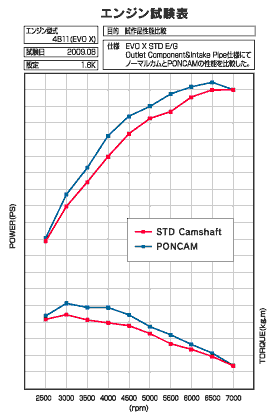

the setting data of MIVEC which TOMEI decided to be optimal at engine bench test .
Please set the actual setting according to the specification of the target vehicle.
  Engine RPM 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500
IN Initial setting
central angle 112 °
Advance value twenty five twenty five twenty five twenty five twenty five 20 15 8 6 Five 0
Center angle at advancement 87 87 87 87 87 92 97 104 106 107 112
EX Initial setting
central angle 120 °
Advance value 30 30 30 27 twenty four 18 14 7 2 0 0
Center angle at advancement 90 90 90 93 96 102 106 113 118 120 120
※ Because it is bench test data, it is data at the time of full rotation of each rotation range. Please set the over range optimally.

Unrivaled overwhelming performance

About 2 years since EVO X was released. Meanwhile, after passing through a huge number of development programs including normal test, various tests, verification of other company's products, Pon cam for 4B 11 was finished.
We will concentrate TOMEI 's total power in material selection, profile design, manufacturing process, all of it, giving quality to overwhelm everything in every aspect,
and offering impressive performance to all EVO X owners.




Features of PONCAM
■ Use special material
■ High precision grinding
■ Valve timing adjustment completed
■ No need for valve spring exchange
■ Overall high performance
■ Excellent turbine response
■ Variable valve timing correspondence * EVO 9
■ Stable idling
■ Best balance

MIVEC compatible cam

With MIVEC compliance, you can experience the effect of cams throughout.

Specifications

SKU 143059
Brand PONCAM
Shipping Weight 7.0000kg
Shipping Width 0.170m
Shipping Height 0.054m
Shipping Length 0.080m
Shipping Cubic 0.000734000m3
