Description

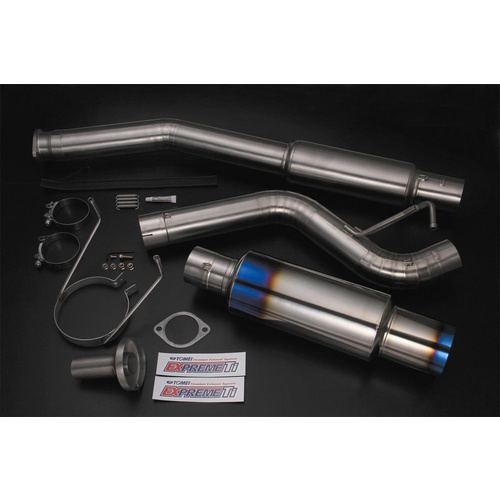

EXPREME Ti TITANIUM MUFFLER for BNR32/BCNR33/BNR34
EXHAUST SYSTEM
High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled in terms of performance and price.
PRODUCT INFO
APPLICATION | P/N | NOTES | |
---|---|---|---|
BNR32 | 440007 | ※FOR OFF ROAD USE ONLY. | |
BCNR33 | 440008 | ||
BNR34 | 440009 |
FEATURE / SPEC
KIT CONTENTS
|
SPEC
Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.
BNR32 | BCNR33 | BNR34 | ||||
---|---|---|---|---|---|---|
TOMEI | STD | TOMEI | STD | TOMEI | STD | |
MATERIAL | TITANIUM | IRON | TITANIUM | IRON | TITANIUM | IRON |
MAIN PIPE DIAMETER | Φ89.1 | Φ70.0 | Φ89.1 | Φ68-63.5mm | Φ89.1 | Φ68-63.5mm |
MAIN PIPE THICKNESS | 1mm | 1.5mm | 1mm | 1.5mm | 1mm | 1.5mm |
SILENCER DIAMETER | Φ152 | – | Φ152 | – | Φ152 | – |
SILENCER THICKNESS | 1mm | – | 1mm | – | 1mm | – |
EXIT DIAMETER | Φ115 | (92-70mm) | Φ115 | (80-72mm)×2 | Φ115 | 80mm×2 |
EXIT THICKNESS | 1mm | – | 1mm | – | 1mm | – |
FLANGE THICKNESS | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm | 8.0mm |
WEIGHT | 7.35kg | 19.5kg | 7.15kg | 18.9kg | 7.05kg | 18.0kg |
12.15kg DROP! | 11.75kg DROP! | 10.95kg DROP! |
Specifications
SKU | 440008 |
Brand | TOMEI |
Shipping Weight | 10.8000kg |
Shipping Width | 1.310m |
Shipping Height | 0.350m |
Shipping Length | 0.260m |
