Haltech Elite Series ECUs take the art of engine management to a brand new level. With a waterproof case, drive-by-wire, exhaust cam and knock control the Elite Series ECUs provide cutting edge technology to tuners and performance enthusiasts world-wide.
FEATURES:
? Waterproof Case (IP67)
? 4 x Fuel Injection Outputs
? 4 x Ignition Outputs
? 20 x Digital Outputs
? 10 x Analogue Voltage Inputs
? USB Laptop Communications up to 1 MB/s
? Drive By Wire (DBW) Throttle Control
? 6 x Engine Position Inputs with extensive trigger type support
? Programmable Injector Peak and Hold Currents
? OBDII Capable ¨C Set and clear diagnostic trouble codes, view live engine data
? ESP Calibration Software ¨C Intuitive and easy to use
? Dual CAN Bus communication for OEM and Haltech CAN Expansion
? User definable 5D Tuning ¨C Tune by gear, Cam angle or any channel for ultimate flexibility
? Variable cam control ¨C Independently control up to 4 camshafts
? Auto tune capabilities ¨C Short and Long term fuel, ignition, boost and idle control learning
? Staged Fuelling ¨C Up to four stages of injectors
? Single Channel Knock Control ¨C with high speed digital filtering for accurate detection
? Multi-fuel Support ¨C Support for Petrol (Gasoline), LPG, Methanol and Ethanol
? E85 Flex Fuel Ready ¨C With additional boost tables
? Closed Loop Boost Control ¨C Multiple Modes ¨C Tune by gear, wheel speed or time
? Closed Loop Idle Control ¨C With learning for consistent idle stability
? Closed Loop 02 Control ¨C Dual bank control for precise tuning
? Anti-Lag and Launch Control ¨C Drag and Rally modes
? Data logging ¨C Internal memory & external laptop logging
? Multi Level Engine Protection ¨C Set limits for sensors and protect your engine
? ECU comes fully enabled, no additional charges for advanced features
?DOWNLOADS:
??Software and Firmware
??Fitting Guides and Wiring
??Base Maps
RELATED VIDEOS:
??Elite Series Overview
??Elite 1500 vs Elite 2500 which one is right for you?
??How to choose your ECU
??Elite Series ¨C What¡¯s in the box?
??Wiring Elite series ECUs using ESP software

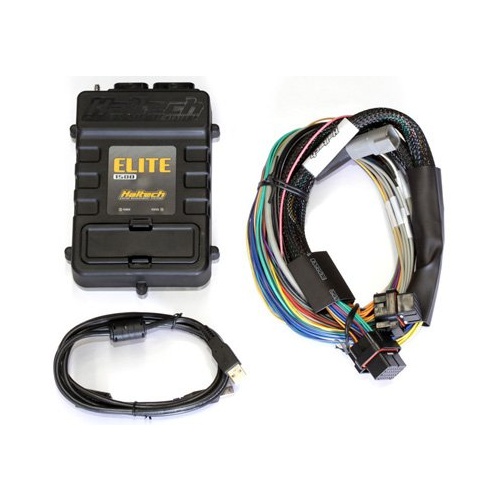

Elite 1500 Universal Harness Kit ¨C Basic
Part Number: HT-150901
Includes: Elite 1500 (DBW) ECU,? 1.2m (4 ft) Basic Universal Wiring Harness Kit ¨C (no relays or fuses),? USB Software Key and USB programming cable.
